JAX-WS : SOAP handler in client side

This is part 2 of JAX-WS SOAP handler. In previous article – JAX-WS : SOAP handler in server side, you created a web service and attach a handler to retrieve the client MAC address in header block, for every incoming SOAP message.

SOAP handler in client side

In this article, you will develop a web service client to access the published service in previous article, and attach a handler to inject client’s MAC address into header block, for every outgoing SOAP message that’s send by client side.

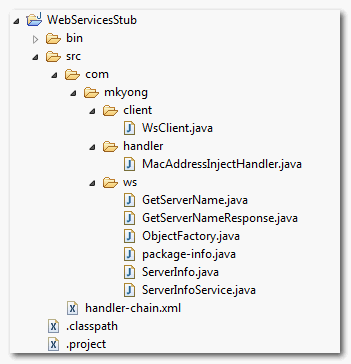

Directory structure of this example

1. Web Service Client

Uses wsimport command to parse the published service WSDL file (http://localhost:8888/ws/server?wsdl) and generate all required files to access the service.

C:\>wsimport -keep -verbose http://localhost:8888/ws/server?wsdl
parsing WSDL...
generating code...

Six files are generated automatically, you may only need to concern on the ServerInfoService.java.

File : ServerInfoService.java

@WebServiceClient(name = "ServerInfoService",
	targetNamespace = "http://ws.mkyong.com/",
	wsdlLocation = "http://localhost:8888/ws/server?wsdl")
public class ServerInfoService extends Service

A client to access the published service.
File : WsClient.java

package com.mkyong.client;
import com.mkyong.ws.ServerInfo;
import com.mkyong.ws.ServerInfoService;
public class WsClient{
	public static void main(String[] args) throws Exception {
		ServerInfoService sis = new ServerInfoService();
		ServerInfo si = sis.getServerInfoPort();

2. SOAP Handler

Create a SOAP handler to inject client’s MAC address into the SOAP header block, for every outgoing SOAP message. See comments for the code explanation.

File : MacAddressInjectHandler.java

package com.mkyong.handler;
import java.io.IOException;
import java.net.InetAddress;
import java.net.NetworkInterface;
import java.net.SocketException;
import java.net.UnknownHostException;
import java.util.Set;
import javax.xml.namespace.QName;
import javax.xml.soap.SOAPConstants;
import javax.xml.soap.SOAPEnvelope;
import javax.xml.soap.SOAPException;
import javax.xml.soap.SOAPHeader;
import javax.xml.soap.SOAPHeaderElement;
import javax.xml.soap.SOAPMessage;
import javax.xml.ws.handler.MessageContext;
import javax.xml.ws.handler.soap.SOAPHandler;
import javax.xml.ws.handler.soap.SOAPMessageContext;
public class MacAddressInjectHandler implements SOAPHandler<SOAPMessageContext>{
   public boolean handleMessage(SOAPMessageContext context) {
	System.out.println("Client : handleMessage()......");
	Boolean isRequest = (Boolean) context.get(MessageContext.MESSAGE_OUTBOUND_PROPERTY);
	//if this is a request, true for outbound messages, false for inbound
	    SOAPMessage soapMsg = context.getMessage();
            SOAPEnvelope soapEnv = soapMsg.getSOAPPart().getEnvelope();
            SOAPHeader soapHeader = soapEnv.getHeader();
            //if no header, add one
            if (soapHeader == null){
            	soapHeader = soapEnv.addHeader();
            //get mac address
            String mac = getMACAddress();
            //add a soap header, name as "mac address"
            QName qname = new QName("http://ws.mkyong.com/", "macAddress");
            SOAPHeaderElement soapHeaderElement = soapHeader.addHeaderElement(qname);
	   }catch(SOAPException e){
	   }catch(IOException e){
	   //continue other handler chain
	   return true;
	public boolean handleFault(SOAPMessageContext context) {
		System.out.println("Client : handleFault()......");
		return true;
	public void close(MessageContext context) {
		System.out.println("Client : close()......");
	public Set<QName> getHeaders() {
		System.out.println("Client : getHeaders()......");
		return null;
   //return current client mac address
   private String getMACAddress(){
	InetAddress ip;
	StringBuilder sb = new StringBuilder();
	try {
		ip = InetAddress.getLocalHost();
		System.out.println("Current IP address : " + ip.getHostAddress());
		NetworkInterface network = NetworkInterface.getByInetAddress(ip);
		byte[] mac = network.getHardwareAddress();
		System.out.print("Current MAC address : ");
		for (int i = 0; i < mac.length; i++) {
			sb.append(String.format("%02X%s", mac[i], (i < mac.length - 1) ? "-" : ""));
	} catch (UnknownHostException e) {
	} catch (SocketException e){
	return sb.toString();

3. SOAP Handler XML file

Create a SOAP handler XML file, and puts your SOAP handler declaration.

File : handler-chain.xml

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>

4. Attach SOAP Handler –> Web Service Client

To attach above SOAP handler to web service client, edit the ServerInfoService.java file (generated via wsimport), and annotate with @HandlerChain and specify the SOAP handler file name inside.

File : ServerInfoService.java

@WebServiceClient(name = "ServerInfoService",
	targetNamespace = "http://ws.mkyong.com/",
	wsdlLocation = "http://localhost:8888/ws/server?wsdl")
public class ServerInfoService extends Service

Done, please proceed on next article – Part 3 : JAX-WS – SOAP handler testing for client and server side.

Download Source Code

Download It – JAX-WS-Handler-Example.zip (21KB)
