Here’s a guide to show you how to integrate JSF 2.0 with database via JDBC. In this example, we are using MySQL database and Tomcat web container.

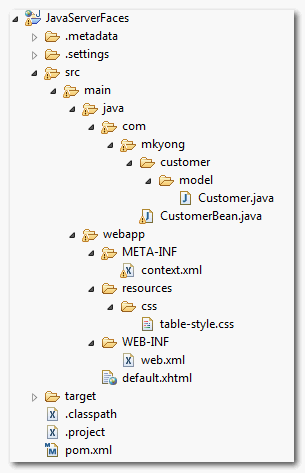

Directory structure of this example

1. Table Structure

Create a “customer” table and insert five dummy records. Later, display it via JSF h:dataTable.

SQL commands

DROP TABLE IF EXISTS `mkyongdb`.`customer`;
CREATE TABLE  `mkyongdb`.`customer` (
  `CUSTOMER_ID` BIGINT(20) UNSIGNED NOT NULL AUTO_INCREMENT,
  `NAME` VARCHAR(45) NOT NULL,
  `ADDRESS` VARCHAR(255) NOT NULL,
  `CREATED_DATE` datetime NOT NULL,
  PRIMARY KEY (`CUSTOMER_ID`)
) ENGINE=InnoDB AUTO_INCREMENT=17 DEFAULT CHARSET=utf8;

INSERT INTO mkyongdb.customer(customer_id, name, address, created_date)
VALUES(1, 'mkyong1', 'address1', now());
INSERT INTO mkyongdb.customer(customer_id, name, address, created_date)
VALUES(2, 'mkyong2', 'address2', now());
INSERT INTO mkyongdb.customer(customer_id, name, address, created_date)
VALUES(3, 'mkyong3', 'address3', now());
INSERT INTO mkyongdb.customer(customer_id, name, address, created_date)
VALUES(4, 'mkyong4', 'address4', now());
INSERT INTO mkyongdb.customer(customer_id, name, address, created_date)
VALUES(5, 'mkyong5', 'address5', now());

2. MySQL DataSource

Configure a MySQL datasource named “jdbc/mkyongdb“, follow this article – How to configure MySQL DataSource in Tomcat 6

3. Model Class

Create a “Customer” model class to store the table records.

File : Customer.java

package com.mkyong.customer.model;

import java.util.Date;

public class Customer{

	public long customerID;
	public String name;
	public String address;
	public Date created_date;

	//getter and setter methods
}

4. JDBC Example

A JSF 2.0 managed bean, inject datasource “jdbc/mkyongdb” via @Resource, and uses normal JDBC API to retrieve all the customer records from database and store it into a List.

File : CustomerBean.java

package com.mkyong;

import java.io.Serializable;
import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.util.ArrayList;
import java.util.List;

import javax.annotation.Resource;
import javax.faces.bean.ManagedBean;
import javax.faces.bean.SessionScoped;
import javax.naming.Context;
import javax.naming.InitialContext;
import javax.naming.NamingException;
import javax.sql.DataSource;

import com.mkyong.customer.model.Customer;

@ManagedBean(name="customer")
@SessionScoped
public class CustomerBean implements Serializable{

	//resource injection
	@Resource(name="jdbc/mkyongdb")
	private DataSource ds;

	//if resource injection is not support, you still can get it manually.
	/*public CustomerBean(){
		try {
			Context ctx = new InitialContext();
			ds = (DataSource)ctx.lookup("java:comp/env/jdbc/mkyongdb");
		} catch (NamingException e) {
			e.printStackTrace();
		}

	}*/

	//connect to DB and get customer list
	public List<Customer> getCustomerList() throws SQLException{

		if(ds==null)
			throw new SQLException("Can't get data source");

		//get database connection
		Connection con = ds.getConnection();

		if(con==null)
			throw new SQLException("Can't get database connection");

		PreparedStatement ps
			= con.prepareStatement(
			   "select customer_id, name, address, created_date from customer");

		//get customer data from database
		ResultSet result =  ps.executeQuery();

		List<Customer> list = new ArrayList<Customer>();

		while(result.next()){
			Customer cust = new Customer();

			cust.setCustomerID(result.getLong("customer_id"));
			cust.setName(result.getString("name"));
			cust.setAddress(result.getString("address"));
			cust.setCreated_date(result.getDate("created_date"));

			//store all data into a List
			list.add(cust);
		}

		return list;
	}
}

5. JSF Page dataTable

A JSF 2.0 xhtml page, uses h:dataTable to display all the customer records in table layout format.

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
      xmlns:h="http://java.sun.com/jsf/html"
      xmlns:f="http://java.sun.com/jsf/core"
      >
    <h:head>
    	<h:outputStylesheet library="css" name="table-style.css"  />
    </h:head>

    <h:body>

    	<h1>JSF 2.0 + JDBC Example</h1>

 		<h:dataTable value="#{customer.getCustomerList()}" var="c"
    			styleClass="order-table"
    			headerClass="order-table-header"
    			rowClasses="order-table-odd-row,order-table-even-row"
    		>

    		<h:column>
    			<f:facet name="header">
    				Customer ID
    			</f:facet>
    				#{c.customerID}
    		</h:column>

    		<h:column>
    			<f:facet name="header">
    				Name
				</f:facet>
    				#{c.name}
    		</h:column>

 			<h:column>
    			<f:facet name="header">
    				Address
				</f:facet>
    				#{c.address}
    		</h:column>

    		<h:column>
    			<f:facet name="header">
    				Created Date
				</f:facet>
    				#{c.created_date}
    		</h:column>

    	</h:dataTable>

    </h:body>

</html>

6. Demo

Run it, see output

Download Source Code

Download It – JSF-2-JDBC-Integration-Example.zip (12KB)

Reference

  1. JDBC example in Java
  2. JNDI datasource examples in Tomcat 6
  3. Configurate MySQL datasource in Tomcat 6
  4. JSF 2 dataTable example
