Struts 2 + Spring 3 + Quartz 1.8 Scheduler Example

In this tutorial, we will show you how to integrate Struts 2 + Spring 3 + Quartz 1.8.6.

Why NOT Quartz 2?
Currently, Spring 3 is still NOT support Quartz 2 APIs, see this SPR-8581 bug report. Will update this article again once bug fixed is released.

Tools used

  1. Spring 3.1.5.RELEASE
  2. Quartz 1.8.6
  3. Struts 2.3.4
  4. Struts2-spring-plugin 2.3.4
  5. Maven 3
  6. Eclipse 4.2

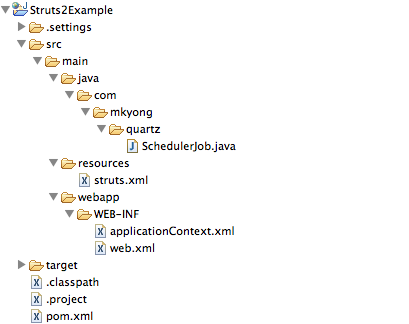

1. Project Folder

Here’s the final project folder structure.

2. Dependency Libraries

The integration is similar with this Spring 2.5.6 + Quartz 1.6, just the Spring3’s dependencies are a bit messy, read Maven pom.xml below for all the dependencies you need to develop this tutorial.

See the XML comments to understand why you need that jar.

File : pom.xml


  ...
<dependencies>

  <!-- Struts 2 -->
  <dependency>
	<groupId>org.apache.struts</groupId>
	<artifactId>struts2-core</artifactId>
	<version>2.3.4</version>
  </dependency>

  <!-- Quartz framework -->
  <dependency>
	<groupId>org.quartz-scheduler</groupId>
	<artifactId>quartz</artifactId>
	<version>1.8.6</version>
  </dependency>

  <!-- Spring 3 dependencies -->
  <dependency>
	<groupId>org.springframework</groupId>
	<artifactId>spring-core</artifactId>
	<version>3.1.2.RELEASE</version>
  </dependency>

  <dependency>
	<groupId>org.springframework</groupId>
	<artifactId>spring-context</artifactId>
	<version>3.1.2.RELEASE</version>
  </dependency>

  <!-- QuartzJobBean in spring-context-support.jar -->
  <dependency>
	<groupId>org.springframework</groupId>
	<artifactId>spring-context-support</artifactId>
	<version>3.1.2.RELEASE</version>
  </dependency>

  <!-- Struts 2 + Spring 3 need this jar, ContextLoaderListener -->
  <dependency>
	<groupId>org.springframework</groupId>
	<artifactId>spring-web</artifactId>
	<version>3.1.2.RELEASE</version>
  </dependency>

  <!-- Spring + Quartz need transaction -->
  <dependency>
	<groupId>org.springframework</groupId>
	<artifactId>spring-tx</artifactId>
	<version>3.1.2.RELEASE</version>
  </dependency>

  <!-- Struts 2 + Spring integration plugins -->
  <dependency>
	<groupId>org.apache.struts</groupId>
	<artifactId>struts2-spring-plugin</artifactId>
	<version>2.3.4</version>
  </dependency>

</dependencies>
  ...

3. Spring 3 + Quartz

To integrate both Spring3 and Quartz, create a class extends org.springframework.scheduling.quartz.QuartzJobBean, and implements the executeInternal() method, just like how you create scheduler job in Quartz.

File : SchedulerJob.java


package com.mkyong.quartz;

import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;
import org.springframework.scheduling.quartz.QuartzJobBean;

public class SchedulerJob extends QuartzJobBean
{

	protected void executeInternal(JobExecutionContext context)
	throws JobExecutionException {

		System.out.println("Struts 2.3.4 + Quartz 1.8.6 + Spring 3.1.2");

	}
}

File : applicationContext.xml – puts the entire Quartz’s scheduler and Spring detail in applicationContext.xml. See XML comments for detail.


<beans xmlns="http://www.springframework.org/schema/beans"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://www.springframework.org/schema/beans
  http://www.springframework.org/schema/beans/spring-beans-3.0.xsd">

  <!-- Spring Quartz Scheduler job -->
  <bean name="schedulerJob" class="org.springframework.scheduling.quartz.JobDetailBean">
	<property name="jobClass" value="com.mkyong.quartz.SchedulerJob" />
  </bean>

  <!-- Cron Trigger, run every 10 seconds -->
  <bean id="cronTrigger" class="org.springframework.scheduling.quartz.CronTriggerBean">
	<property name="jobDetail" ref="schedulerJob" />
	<property name="cronExpression" value="0/10 * * * * ?" />
  </bean>

  <!-- DI -->
  <bean class="org.springframework.scheduling.quartz.SchedulerFactoryBean">
	<property name="jobDetails">
		<list>
			<ref bean="schedulerJob" />
		</list>
	</property>

	<property name="triggers">
		<list>
			<ref bean="cronTrigger" />
		</list>
	</property>
  </bean>

</beans>

4. Struts 2 + Spring 3

To integrate Struts 2 + Spring, just put the org.springframework.web.context.ContextLoaderListener listener class in the web.xml file.

Note
For detail, please read this Struts 2 + Spring integration example.

File : web.xml


<!DOCTYPE web-app PUBLIC
 "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
 "http://java.sun.com/dtd/web-app_2_3.dtd" >

<web-app>
	<display-name>Struts 2 Web Application</display-name>

	<filter>
	  <filter-name>struts2</filter-name>
	  <filter-class>
		org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter
	  </filter-class>
	</filter>

	<filter-mapping>
	  <filter-name>struts2</filter-name>
	  <url-pattern>/*</url-pattern>
	</filter-mapping>

	<listener>
	  <listener-class>
		org.springframework.web.context.ContextLoaderListener
	  </listener-class>
	</listener>

</web-app>

5. Demo

Done, when Strut2 is started, it call Spring and run the defined Quartz’s job.


Jul 24, 2012 4:49:07 PM org.apache.coyote.AbstractProtocol start
INFO: Starting ProtocolHandler ["http-bio-8080"]
Jul 24, 2012 4:49:07 PM org.apache.coyote.AbstractProtocol start
INFO: Starting ProtocolHandler ["ajp-bio-8009"]
Jul 24, 2012 4:49:07 PM org.apache.catalina.startup.Catalina start
INFO: Server startup in 3430 ms
Struts 2.3.4 + Quartz 1.8.6 + Spring 3.1.2  //run this every 10 seconds.
Struts 2.3.4 + Quartz 1.8.6 + Spring 3.1.2
Struts 2.3.4 + Quartz 1.8.6 + Spring 3.1.2

Download Source Code

Download it – Struts2-Spring3-Quartz-Example.zip (20 KB).

References

  1. Struts 2 + Spring integration example
  2. Struts 2 Spring plugin documentation
  3. QuartzJobBean JavaDoc
  4. Spring should support Quartz 2.0 CronTrigger interface
  5. Struts 2 + Spring 2.5.6 + Quartz integration example
