Struts 2 <s:doubleselect> example

In Struts 2 , the <s:doubleselect> tag is used to create two HTML drop down boxes, once the first drop down list is selected, the second drop down list will be change accordingly. A very classic example is the “country” and “state” drop down selection, where different “state” lists are depending on the selected “country“.

A <s:doubleselect> tag


<s:doubleselect label="Fruits (OGNL) "
name="fruit1" list="{'fruit','meat'}"
doubleName="fruit2"
doubleList="top == 'fruit' ? {'apple', 'orange','banana'} : {'chicken', 'pig'}" />

Resulting the following HTML code…


<tr>
<td class="tdLabel">
  <label for="resultAction_fruit1" class="label">
     Fruits (OGNL) :
  </label>
</td>
<td>
<select name="fruit1" id="resultAction_fruit1"
    onchange="resultAction_fruit1Redirect(this.options.selectedIndex)">
    <option value="fruit">fruit</option>
    <option value="meat">meat</option>
</select>
<br />
<select name="fruit2" id="resultAction_fruit2">
</select>
<script type="text/javascript">
    var resultAction_fruit1Group = new Array(2 + 0);
    for (i = 0; i < (2 + 0); i++)
    resultAction_fruit1Group[i] = new Array();

    resultAction_fruit1Group[0][0] = new Option("apple", "apple");

    resultAction_fruit1Group[0][1] = new Option("orange", "orange");

    resultAction_fruit1Group[0][2] = new Option("banana", "banana");

    resultAction_fruit1Group[1][0] = new Option("chicken", "chicken");

    resultAction_fruit1Group[1][1] = new Option("pig", "pig");


    var resultAction_fruit1Temp = document.resultAction.resultAction_fruit2;
    resultAction_fruit1Redirect(0);
    function resultAction_fruit1Redirect(x) {
    	var selected = false;
        for (m = resultAction_fruit1Temp.options.length - 1; m >= 0; m--) {
            resultAction_fruit1Temp.options[m] = null;
        }

        for (i = 0; i < resultAction_fruit1Group[x].length; i++) {
            resultAction_fruit1Temp.options[i] =
	     new Option(
              resultAction_fruit1Group[x][i].text, resultAction_fruit1Group[x][i].value
             );
         }

        if ((resultAction_fruit1Temp.options.length > 0) && (! selected)) {
           	resultAction_fruit1Temp.options[0].selected = true;
        }
    }
</script>
</td>
</tr>

Well, the <s:doubleselect> tag is really generate a lot of codes. It will create two drop down lists, many JavaScript’s codes to do the magic behind (first select, second change), and also attached a “onchange()” behavior to the first drop down box.

Look complicated, but simple!
It’s just two <s:select> tags combine in a single tag, see clearly again.


<s:doubleselect
name="" list=""
doubleName="" doubleList="" />

The “name” and “list” is refer to the first drop down lists; the “doubleName” and “doubleList” is refer to the second drop down list. The data population is same with the “<s:select>” tag.

Struts 2 <s:doubleselect> example

A complete full example of the <s:doubleselect> tag, show the use of OGNL or Java lists to populate the data to the drop down lists.

1. Action

Action class to generate and hold the two drop down lists.
DoubleSelectAction.java


package com.mkyong.common.action;

import java.util.ArrayList;
import java.util.Arrays;
import java.util.HashMap;
import java.util.Map;
import java.util.Set;

import com.opensymphony.xwork2.ActionSupport;

public class DoubleSelectAction extends ActionSupport{

	private String fruit1;
	private String fruit2;

	private String server1;
	private String server2;

	private String language1;
	private String language2;

	Map languageMap;

	public String getFruit1() {
		return fruit1;
	}

	public void setFruit1(String fruit1) {
		this.fruit1 = fruit1;
	}

	public String getFruit2() {
		return fruit2;
	}

	public void setFruit2(String fruit2) {
		this.fruit2 = fruit2;
	}

	public String getServer1() {
		return server1;
	}

	public void setServer1(String server1) {
		this.server1 = server1;
	}

	public String getServer2() {
		return server2;
	}

	public void setServer2(String server2) {
		this.server2 = server2;
	}

	public String getLanguage1() {
		return language1;
	}

	public void setLanguage1(String language1) {
		this.language1 = language1;
	}

	public String getLanguage2() {
		return language2;
	}

	public void setLanguage2(String language2) {
		this.language2 = language2;
	}

	public Map getLanguageMap() {
		return languageMap;
	}

	public void setLanguageMap(Map languageMap) {
		this.languageMap = languageMap;
	}

	public DoubleSelectAction(){
	  languageMap =new HashMap();

          languageMap.put("Java",
            new ArrayList<String>(Arrays.asList("Spring", "Hibernate", "Struts 2")));
          languageMap.put(".Net", new ArrayList<String>(Arrays.asList("VB.Net", "C#")));
          languageMap.put("JavaScript", new ArrayList<String>(Arrays.asList("jQuery")));
	}

	public String execute() {
		return SUCCESS;
	}

	public String display() {
		return NONE;
	}

}

2. Result page

Render two drop down boxes via “<s:doubleselect>” tag, and populate the lists via Java list and OGNL list

doubleselect.jsp


<%@ taglib prefix="s" uri="/struts-tags" %>
<html>
<head>
</head>

<body>
<h1>Struts 2 <s:doubleselect> example</h1>

<s:form action="resultAction" namespace="/">

<s:doubleselect label="Fruits (OGNL) "
name="fruit1" list="{'fruit','meat'}"
doubleName="fruit2"
doubleList="top == 'fruit' ? {'apple', 'orange','banana'} : {'chicken', 'pig'}" />

<s:set name="serverList"
     value="#{
         'AppServer': {'Apache', 'Tomcat', 'JBoss'},
         'Database': {'Oracle', 'MySQL'}
         }" />
<s:doubleselect label="Server (OGNL) "
name="server1" list="#serverList.keySet()"
doubleName="server2" doubleList="#serverList[top]" />

<s:doubleselect label="Language (Java List) "
name="language1" list="languageMap.keySet()"
doubleName="language2" doubleList="languageMap.get(top)" />

<s:submit value="submit" name="submit" />

</s:form>

</body>
</html>

result.jsp


<%@ taglib prefix="s" uri="/struts-tags" %>
<html>

<body>
<h1>Struts 2 <s:doubleselect> example</h1>

<h2>
  Test #1 : <s:property value="fruit1"/> , <s:property value="fruit2"/>
</h2>

<h2>
  Test #2 : <s:property value="server1"/> , <s:property value="server2"/>
</h2>

<h2>
  Test #2 : <s:property value="language1"/> , <s:property value="language2"/>
</h2>

</body>
</html>

3. struts.xml

Link all together ~


<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
"http://struts.apache.org/dtds/struts-2.0.dtd">

<struts>

 <constant name="struts.devMode" value="true" />

<package name="default" namespace="/" extends="struts-default">

   <action name="doubleSelectAction"
         class="com.mkyong.common.action.DoubleSelectAction" method="display">
	<result name="none">pages/doubleselect.jsp</result>
   </action>

   <action name="resultAction" class="com.mkyong.common.action.DoubleSelectAction">
	<result name="success">pages/result.jsp</result>
   </action>
  </package>

</struts>

5. Demo

http://localhost:8080/Struts2Example/doubleSelectAction.action

Struts 2 double select example

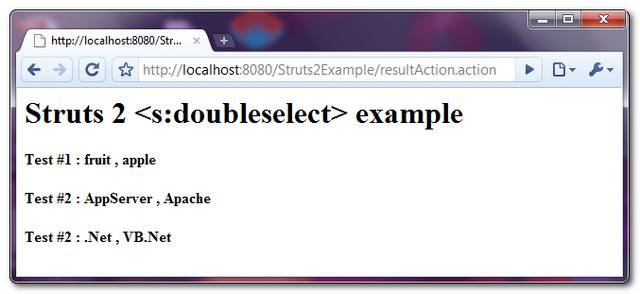

http://localhost:8080/Struts2Example/resultAction.action

Struts 2 double select example

Reference

  1. Struts 2 double select documentation
  2. Struts 2 <s:select> example
  3. http://chuanliang2007.spaces.live.com/blog/cns!E5B7AB2851A4C9D2!393.entry
