Struts 2 <s:combobox> combo box example

Download It – Struts-ComboBox-Example.zip

In Struts 2 , the <s:combobox> tag is basically a drop down list grouped together with a single-line text box, allowing the user to either type a value directly into the text box or choose the value from the drop down list, and the selected value will populate to the text box automatically.

In case you are confuse between drop down list and combo box list, read the combo box definition from Wiki.

<s:combobox label="What's your favor fruit"
		headerKey="-1" headerValue="--- Select ---"
		list="fruits"
		name="yourFruits" />

Resulting the following HTML code…


<td class="tdLabel">
   <label for="resultAction_yourFruits" class="label">
       What's your favor fruit:
   </label>
</td>
<td>
<script type="text/javascript">
function autoPopulate_resultAction_yourFruits(targetElement) {
	if (targetElement.options[targetElement.selectedIndex].value == '-1') {
		return;
	}
	targetElement.form.elements['yourFruits'].value=
              targetElement.options[targetElement.selectedIndex].value;
}
</script>
<input type="text" name="yourFruits" value="" id="resultAction_yourFruits"/>
<br />
<select onChange="autoPopulate_resultAction_yourFruits(this);">
    <option value="-1">--- Select ---</option>
    <option value="Apple">Apple</option>
    <option value="Banana">Banana</option>
    <option value="Orange">Orange</option>
    <option value="Watermelon">Watermelon</option>
</select>
</td>

The <s:combobox> tag will generate an input text box, drop down list with an “onChange()” behavior to call the generated JavaScript function to populate the selected value from the drop down list into the generated text box automatically.

To create a drop down list , you should use <s:select> tag instead.

Struts 2 <s:combobox> example

A full Struts 2 example to show the use of combo box via <s:combobox>

1. Action

Action class to generate and hold the selected combo box options.
ComboBoxAction.java


package com.mkyong.common.action;

import java.util.ArrayList;
import java.util.List;

import com.opensymphony.xwork2.ActionSupport;

public class ComboBoxAction extends ActionSupport{

	private List<String> fruits;

	private String yourFruits;
	private String yourMonth;

	public String getYourMonth() {
		return yourMonth;
	}

	public void setYourMonth(String yourMonth) {
		this.yourMonth = yourMonth;
	}

	public List<String> getFruits() {
		return fruits;
	}

	public void setFruits(List<String> fruits) {
		this.fruits = fruits;
	}

	public String getYourFruits() {
		return yourFruits;
	}

	public void setYourFruits(String yourFruits) {
		this.yourFruits = yourFruits;
	}

	public ComboBoxAction(){

		fruits = new ArrayList<String>();
		fruits.add("Apple");
		fruits.add("Banana");
		fruits.add("Orange");
		fruits.add("Watermelon");
	}

	public String execute() {
		return SUCCESS;
	}

	public String display() {
		return NONE;
	}

}

2. Result page

Render the combo box via “<s:combobox>” tag, and populate the select options via Java list and OGNL list

combobox.jsp


<%@ taglib prefix="s" uri="/struts-tags" %>
<html>
<head>
</head>

<body>
<h1>Struts 2 <s:combobox> example</h1>

<s:form action="resultAction" namespace="/">

<h2>
	<s:combobox label="What's your favor fruit"
		headerKey="-1" headerValue="--- Select ---"
		list="fruits"
		name="yourFruits" />
</h2>

<h2>
	<s:combobox label="Select a month"
		headerKey="-1" headerValue="--- Select ---"
		list="#{'1':'Jan', '2':'Feb', '3':'Mar', '4':'Apr'}"
		name="yourMonth" />
</h2>

<s:submit value="submit" name="submit" />

</s:form>

</body>
</html>

result.jsp


<%@ taglib prefix="s" uri="/struts-tags" %>
<html>

<body>
<h1>Struts 2 <s:combobox> example</h1>

<h2>
  Favor fruit : <s:property value="yourFruits"/>
</h2>

<h2>
  Selected month : <s:property value="yourMonth"/>
</h2>

</body>
</html>

3. struts.xml

Link all together ~


<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
"http://struts.apache.org/dtds/struts-2.0.dtd">

<struts>

 <constant name="struts.devMode" value="true" />

<package name="default" namespace="/" extends="struts-default">

   <action name="comboBoxAction"
         class="com.mkyong.common.action.ComboBoxAction" method="display">
	<result name="none">pages/combobox.jsp</result>
   </action>

   <action name="resultAction" class="com.mkyong.common.action.ComboBoxAction">
	<result name="success">pages/result.jsp</result>
   </action>

</package>

</struts>

5. Demo

http://localhost:8080/Struts2Example/comboBoxAction.action

Struts 2 combo box example

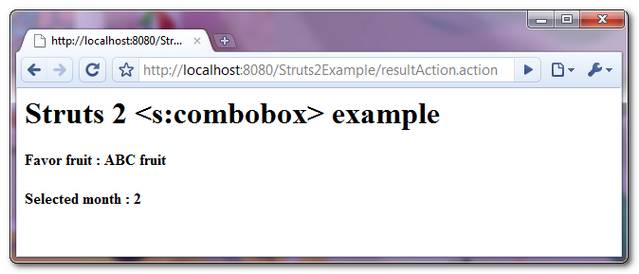

http://localhost:8080/Struts2Example/resultAction.action

Struts 2 combo box example

Reference

  1. Struts 2 combo box documentation
  2. Wiki combo box definition
