Struts 2 + Log4j integration example

struts2 log4j

In this tutorial, we will show you how to integrate the log4j framework with the Struts 2 web application. All you need to do is

  1. Include the log4j.jar as the project dependency
  2. Create a log4j.properties file and put it into the root of the classpath, with Maven, put it into the resources folder.

Technologies and tools used :

  1. Log4j 1.2.17
  2. Struts 2.3.16.3
  3. Maven 3
  4. Tomcat 6
  5. Eclipse Kepler 4.3

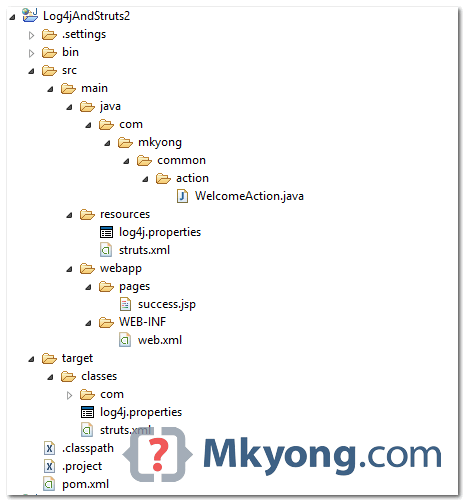

1. Project Directory

Review the final project structure.

strruts2-log4j-directory

2. Project Dependencies

Declares Struts 2 and log4j dependencies :

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
	http://maven.apache.org/maven-v4_0_0.xsd">

	<modelVersion>4.0.0</modelVersion>
	<groupId>com.mkyong.common</groupId>
	<artifactId>Struts2</artifactId>
	<packaging>war</packaging>
	<version>1.0-SNAPSHOT</version>
	<name>Struts + Log4j Webapp</name>
	<url>http://maven.apache.org</url>

	<properties>
		<jdk.version>1.7</jdk.version>
		<struts.version>2.3.16.3</struts.version>
		<log4j.version>1.2.17</log4j.version>
	</properties>

	<dependencies>

		<!-- Struts 2 -->
		<dependency>
			<groupId>org.apache.struts</groupId>
			<artifactId>struts2-core</artifactId>
			<version>${struts.version}</version>
		</dependency>

		<!-- Log4j -->
		<dependency>
			<groupId>log4j</groupId>
			<artifactId>log4j</artifactId>
			<version>${log4j.version}</version>
		</dependency>

	</dependencies>

	<build>
	  <finalName>Struts2</finalName>
	  <plugins>
		<plugin>
			<groupId>org.apache.maven.plugins</groupId>
			<artifactId>maven-eclipse-plugin</artifactId>
			<version>2.9</version>
			<configuration>
				<downloadSources>true</downloadSources>
				<downloadJavadocs>false</downloadJavadocs>
				<wtpversion>2.0</wtpversion>
			</configuration>
		</plugin>
		<plugin>
			<groupId>org.apache.maven.plugins</groupId>
			<artifactId>maven-compiler-plugin</artifactId>
			<version>2.3.2</version>
			<configuration>
				<source>${jdk.version}</source>
				<target>${jdk.version}</target>
			</configuration>
		</plugin>
	  </plugins>
	</build>
</project>

3. log4j.properties

Create a log4j properties file, and put it into the resources folder, refer to step #1.

log4j.properties

# Root logger option
log4j.rootLogger=ERROR, stdout, file

# Redirect log messages to console
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.Target=System.out
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%d{yyyy-MM-dd HH:mm:ss} %-5p %c{1}:%L - %m%n

# Redirect log messages to a log file, support rolling backup file.
log4j.appender.file=org.apache.log4j.RollingFileAppender
log4j.appender.file.File=${catalina.home}/logs/mystruts2app.log
log4j.appender.file.MaxFileSize=5MB
log4j.appender.file.MaxBackupIndex=10
log4j.appender.file.layout=org.apache.log4j.PatternLayout
log4j.appender.file.layout.ConversionPattern=%d{yyyy-MM-dd HH:mm:ss} %-5p %c{1}:%L - %m%n

4. Struts 2 Action and Logging

A simple action to return a page, and shows you how to do message logging with log4j.

WelcomeAction.java

package com.mkyong.common.action;

import org.apache.log4j.Logger;
import com.opensymphony.xwork2.ActionSupport;

public class WelcomeAction extends ActionSupport {

	private static final long serialVersionUID = 1L;

	//get log4j
	private static final Logger logger = Logger.getLogger(WelcomeAction.class);

	public String execute() throws Exception {

		// logs debug message
		if (logger.isDebugEnabled()) {
			logger.debug("execute()!");
		}

		// logs exception
		logger.error("This is Error message", new Exception("Testing"));

		return SUCCESS;

	}
}

5. Struts 2 Configuration

Struts 2 configuration and JSP pages, in case you are interested.

struts.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
"http://struts.apache.org/dtds/struts-2.0.dtd">

<struts>
	<constant name="struts.devMode" value="true" />

	<package name="welcome" namespace="/" extends="struts-default">

		<action name="welcome" class="com.mkyong.common.action.WelcomeAction">
			<result name="success">pages/success.jsp</result>
		</action>

	</package>

</struts>
web.xml

<web-app xmlns="http://java.sun.com/xml/ns/javaee"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
	http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
	version="2.5">

	<display-name>Struts 2 Web Application</display-name>

	<filter>
		<filter-name>struts2</filter-name>
		<filter-class>
			org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter
		</filter-class>
	</filter>

	<filter-mapping>
		<filter-name>struts2</filter-name>
		<url-pattern>/*</url-pattern>
	</filter-mapping>

</web-app>
pages/success.jsp

<%@ taglib prefix="s" uri="/struts-tags" %>
<html>
<head>
</head>

<body>
<h1>Struts 2 + Log4j integration example</h1>

</body>
</html>

6. Demo

Run the Struts 2 web application, and access the welcome action.

URL : http://localhost:8888/Log4jAndStruts2/welcome

struts 2 log4j demo

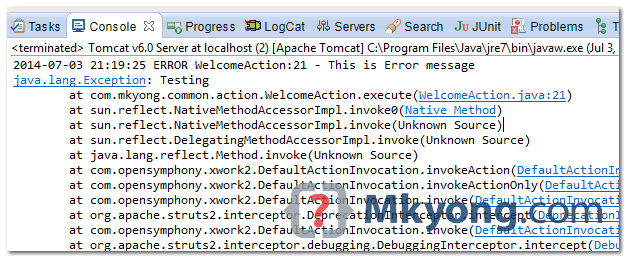

6.1 All logging messages will be displayed in the console.

strruts2-log4j-demo-eclipse-console

Figure : Eclipse console

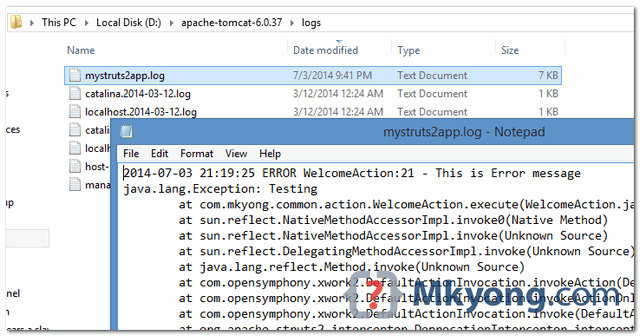

6.2 Furthermore, a logging file will be created in the Tomcat’s logs folder.

strruts2-log4j-demo-file

Figure : D:\apache-tomcat-6.0.37\logs\mystruts2app.log

Download Source Code

Download it – Log4jAndStruts2Example.zip (20 KB)

References

  1. Create Struts 2 Web Application Example
  2. log4j 1.2 official page
  3. log4j hello world example
  4. Struts 2 exceptions and logging
