Struts 2 datetimepicker example

In Struts 2, the dojo ajax tag “<sx:datetimepicker>” will render a text box and append a calender icon behind, click on the calender icon will prompt a date time picker component.

To create a date time pick component, just ensure :
1. Download the struts2-dojo-plugin.jar library.
2. Include the “struts-dojo-tags” tag and output its header.


<%@ taglib prefix="sx" uri="/struts-dojo-tags" %>
<html>
<head>
<sx:head />
</head>

For example,


<%@ taglib prefix="s" uri="/struts-tags" %>
<%@ taglib prefix="sx" uri="/struts-dojo-tags" %>
<html>
<head>
<sx:head />
</head>
<body>
<sx:datetimepicker name="date2" label="Format (dd-MMM-yyyy)"
displayFormat="dd-MMM-yyyy" value="%{'2010-01-01'}"/>
...

Resulting the following HTML, few dojo and JavaScript libraries to create a date time pick component.


<html>
<head>
<script language="JavaScript" type="text/javascript">
    // Dojo configuration
    djConfig = {
        isDebug: false,
        bindEncoding: "UTF-8"
          ,baseRelativePath: "/Struts2Example/struts/dojo/"
          ,baseScriptUri: "/Struts2Example/struts/dojo/"
         ,parseWidgets : false
    };
</script>
<script language="JavaScript" type="text/javascript"
        src="/Struts2Example/struts/dojo/struts_dojo.js"></script>

<script language="JavaScript" type="text/javascript"
        src="/Struts2Example/struts/ajax/dojoRequire.js"></script>

<link rel="stylesheet" href="/Struts2Example/struts/xhtml/styles.css" type="text/css"/>

<script language="JavaScript" src="/Struts2Example/struts/utils.js"
type="text/javascript"></script>

<script language="JavaScript" src="/Struts2Example/struts/xhtml/validation.js"
type="text/javascript"></script>

<script language="JavaScript" src="/Struts2Example/struts/css_xhtml/validation.js"
type="text/javascript"></script>
</head>
...
<td class="tdLabel">
<label for="widget_1291193434" class="label">Format (dd-MMM-yyyy):
</label></td>
<td>
<div dojoType="struts:StrutsDatePicker"    id="widget_1291193434"
value="2010-01-01"    name="date2"    inputName="dojo.date2"
displayFormat="dd-MMM-yyyy"  saveFormat="rfc"></div>
</td>
</tr>
<script language="JavaScript" type="text/javascript">
djConfig.searchIds.push("widget_1291193434");</script>

Struts 2 <s:datetimepicker> example

A complete full example of the <s:datetimepicker> tag to generate a datetimepicker component, and show the use of OGNL and Java property to set the default date to the “datetimepicker” component.

1. pom.xml

Download the Struts 2 dojo dependency libraries.

pom.xml


//...
   <!-- Struts 2 -->
   <dependency>
      <groupId>org.apache.struts</groupId>
      <artifactId>struts2-core</artifactId>
      <version>2.1.8</version>
    </dependency>

    <!-- Struts 2 Dojo Ajax Tags -->
    <dependency>
      <groupId>org.apache.struts</groupId>
      <artifactId>struts2-dojo-plugin</artifactId>
      <version>2.1.8</version>
    </dependency>
//...

2. Action class

Action class to store the selected date.

DateTimePickerAction.java


package com.mkyong.common.action;

import java.util.Date;
import com.opensymphony.xwork2.ActionSupport;

public class DateTimePickerAction extends ActionSupport{

	private Date date1;
	private Date date2;
	private Date date3;

	//return today date
	public Date getTodayDate(){

		return new Date();
	}

	//getter and setter methods
	public String execute() throws Exception{

		return SUCCESS;
	}

	public String display() {
		return NONE;
	}

}

3. Result Page

Render the date time picker component via “<s:datetimepicker>” tag, set the default date via Java property and OGNL.

The ‘displayFormat‘ attribute is supported in many date patterns, read this article – Date Format Patterns.
Ensure you put the “struts-dojo-tags” tag and render it’s header <sx:head />


<%@ taglib prefix="sx" uri="/struts-dojo-tags" %>
<html>
<head>
<sx:head />
</head>

datetimepicker.jsp


<%@ taglib prefix="s" uri="/struts-tags" %>
<%@ taglib prefix="sx" uri="/struts-dojo-tags" %>
<html>
<head>
<sx:head />
</head>

<body>
<h1>Struts 2 datetimepicker example</h1>

<s:form action="resultAction" namespace="/" method="POST" >

<sx:datetimepicker name="date1" label="Format (dd-MMM-yyyy)"
displayFormat="dd-MMM-yyyy" value="todayDate" />

<sx:datetimepicker name="date2" label="Format (dd-MMM-yyyy)"
displayFormat="dd-MMM-yyyy" value="%{'2010-01-01'}"/>

<sx:datetimepicker name="date3" label="Format (dd-MMM-yyyy)"
displayFormat="dd-MMM-yyyy" value="%{'today'}"/>

<s:submit value="submit" name="submit" />

</s:form>

</body>
</html>

result.jsp


<%@ taglib prefix="s" uri="/struts-tags" %>
<html>

<body>
<h1>Struts 2 datetimepicker example</h1>

<h2>
   Date1 : <s:property value="date1"/>
</h2>

<h2>
   Date 2 : <s:property value="date2"/>
</h2>

<h2>
   Date 3 : <s:property value="date3"/>
</h2>

</body>
</html>

3. struts.xml

Link it all ~


<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
"http://struts.apache.org/dtds/struts-2.0.dtd">

<struts>

 <constant name="struts.devMode" value="true" />

<package name="default" namespace="/" extends="struts-default">

  <action name="dateTimePickerAction"
	class="com.mkyong.common.action.DateTimePickerAction"
        method="display">
	<result name="none">pages/datetimepicker.jsp</result>
  </action>

  <action name="resultAction"
        class="com.mkyong.common.action.DateTimePickerAction" >
	<result name="success">pages/result.jsp</result>
  </action>
</package>

</struts>

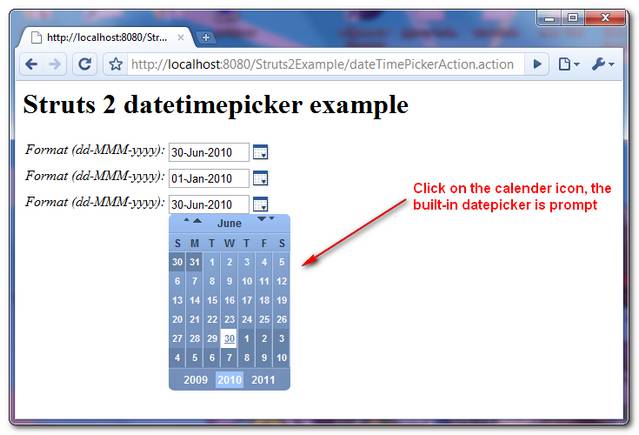

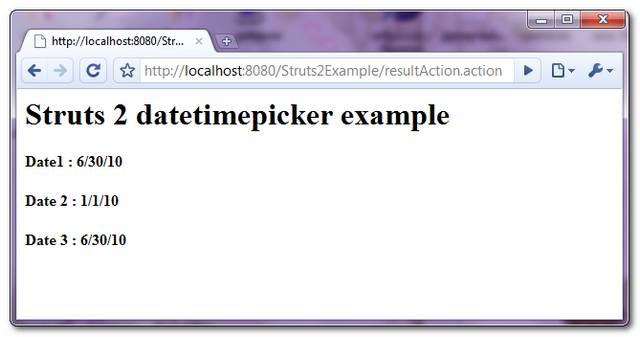

4. Demo

http://localhost:8080/Struts2Example/dateTimePickerAction.action

Struts 2 datetimepicker example
Struts 2 datetimepicker example

Reference

  1. Struts 2 datetimepicker documentation
  2. Struts 2 ajax and javascript recipes
  3. Date Format Pattern
