Struts 2 Chinese localization issue

A Struts 2 i18n localization issues for displaying the Chinese characters…

Case 1 : properties file with special characters

A properties file store the message of username, password and submit in Chinese character. This properties file is created in UTF-8 format, but the content is not encode with native2ascii.

struts2-localization-case1-1

Let try to display the Chinese character via few UI tags. The view page is declared to display in UTF-8 format with HTML meta tag.


...
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8" />
</head>
...
<s:form action="validateUser">
	<s:textfield key="global.username" name="username"/>
	<s:password key="global.password" name="password"/>
	<s:submit key="global.submit" name="submit" />

	<div>Testing 1 : <s:property value="getText('global.username')" /></div>
	<div>Testing 2 : <s:text name="global.password" /></div></br/>
</s:form>
...
<s:url id="localezhCN" namespace="/" action="locale" >
   <s:param name="request_locale" >zh_CN</s:param>
</s:url>
...
<s:a href="%{localezhCN}" >Chinese</s:a>
...

Result

struts2-localization-case1-2

Surprisingly, the following three UI tags are able to display the Chinese message correctly,


<s:textfield key="global.username" name="username"/>
<s:password key="global.password" name="password"/>
Testing 2 : <s:text name="global.password" />

However, the “s:submit” and “getText()” are unable to display it?

According to Java’s i18n documentation, to display a special character correctly with resource bundle, it must be precessed with the native2ascii tool.

After dig into the TextProvider.getText() source code, it’s using the resource bundle.getString() to retrieved the message from resource bundle, so the incorrect messages are reasonable. But why “s:text“, “s:textfield” and “s:password” are able to display the Chinese message correctly, and why “s:submit” will failed? Too many questions in my mind, let go to case 2…

Case 2 : properties file with special characters (Encoded)

This time, the properties file is processed with native2ascii tool and the Chinese characters are encoded properly.

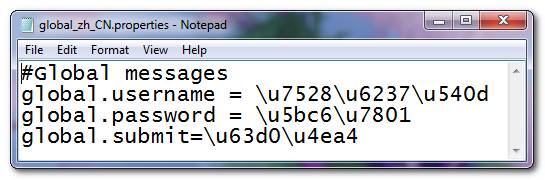

struts2-localization-case2-1

Result

struts2-localization-case2-2

The result is totally reverse, now the “s:submit” and “getText()” are able to display it correctly, but the other UI components are failed. This is work as expected, as Struts 2 recommend getText() to display i18n or localization message. The problem is, why “s:submit” is different?

Struts2..What’s wrong?

Here’s some questions in my mind…

  1. Why the s:submit is perform so differently?
  2. The i18n should be very straightforward, why Struts 2 has this kind of issue? Or i misunderstood how Struts 2 i18n work?
  3. Why there are so many ways to display a message from resource bundle? Why not just group it in one method? In Struts 1, just use the “bean:message”, why it look so complicated in Struts 2?
  4. Is Struts 2 support the XML resource bundle? I just do not like to use the native2ascii tool to encode the data to UTF-8 format, it make the properties file unreadable. Apache Wicket did a very good job in this problem, may be Struts 2 should learn from it.
  5. So, just how to display the Chinese characters correctly in Struts 2?
Many articles and tutorials are told that the following methods are able to display the message from resource bundle:


<s:text name="global.username"/>
<s:property value="getText('global.username')"/>

However, this is only apply to the English or some “English-like (Europe)” characters , e.g France, German. But for Chinese or Japanese, the ‘big square’ characters, both methods will return totally different output. Really no idea how to do the Struts 2 localization for Chinese and Japanese.

updated…(16/6/2010)

Digging the solution from the Baidu search engine, found the indirect solution in one of the Chinese article – Struts 2 internationalizing example

Solution

The problem is in the HTML meta tag,


<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8" />
</head>
In Struts 1, the above meta tag is required to display the UTF-8 data correctly, but this is not true for Struts 2.

In Struts 2, the meta tag is no longer function, we should put the <%@ page contentType=”text/html;charset=UTF-8″ %> tag in the first line of the view page. For example,


<%@ page contentType="text/html;charset=UTF-8" %>
<%@ taglib prefix="s" uri="/struts-tags" %>
<html>
<head>
</head>
...

Result

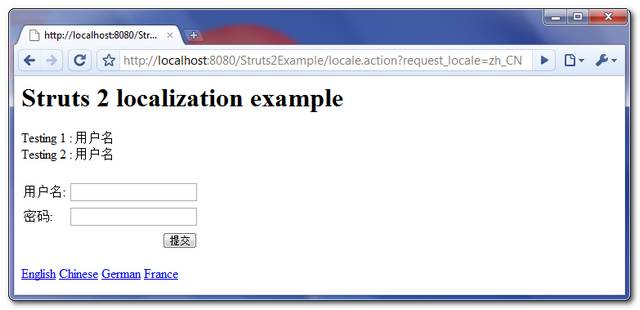

struts2-localization-work

All the Chinese messages are display correctly.

Answer to my previous questions

  1. Why the s:submit is perform so differently?
    A: No comment at this
  2. The i18n should be very straightforward, why Struts 2 has this kind of issue? Or i misunderstood how Struts 2 i18n work?
    A: Make sure to put <%@ page contentType=”text/html;charset=UTF-8″ %>” in the first line of the view page.
  3. Why there are so many ways to display a message from resource bundle? Why not just group it in one method? In Struts 1, just use the “bean:message”, why it look so complicated in Struts 2?
    A: s:text, key, getText(), name… , all are able to render the Chinese or UTF-8 encoded data correctly, just make sure the put the correct “charset” in the view page. I still prefer only one method to control the message bundle (Like Struts 1), too many equivalent options are just drive confuse to the developers.

  4. Is Struts 2 support the XML resource bundle? I just do not like to use the native2ascii tool to encode the data to UTF-8 format, it make the properties file unreadable. Apache Wicket did a very good job in this problem, may be Struts 2 should learn from it.
    A: Hope Struts 2 can support the XML resource bundle in the next release.

  5. So, just how to display the Chinese characters correctly in Struts 2?
    A: See the solution above.

Download it – Struts2-i18n-issue-Example

Reference

  1. http://www.mkyong.com/java/java-convert-chinese-character-to-unicode-with-native2ascii/
  2. http://forums.sun.com/thread.jspa?threadID=5185040
  3. http://www.mail-archive.com/user@struts.apache.org/msg85490.html
  4. http://www.coderanch.com/t/452139/Struts/applicationresources-properties-utf-characters#2013557
  5. http://struts.apache.org/2.1.8/docs/localization.html
  6. http://hxzon00.blog.163.com/blog/static/10489241620088121449163/
