Struts 1 + Quartz 2 scheduler integration example

In this tutorial, we will show you how to create a simple web application project with Apache Struts 1.x, and integrate with Quartz scheduler framework. During project start up, it will start the Quartz engine and fire the defined scheduler task.

The overall idea is quite simple, you just need to create a Quartz Struts plug-in for the integration work.


Struts <--> Quartz Struts Plug-in <--> Quartz

Tools used :

  1. Apache Struts 1.3.10
  2. Quartz 2.1.5
  3. Eclipse IDE
  4. Maven
Note
Please visit this Quartz 2 scheduler example to learn the basic usage of the Quartz framework.

1. Dependency

Get the Struts and Quartz dependencies via Maven.

File : pom.xml


	<dependency>
		<groupId>org.apache.tomcat</groupId>
		<artifactId>servlet-api</artifactId>
		<version>6.0.35</version>
	</dependency>

	<!-- Struts 1.3 framework -->
	<dependency>
		<groupId>org.apache.struts</groupId>
		<artifactId>struts-core</artifactId>
		<version>1.3.10</version>
	</dependency>

	<dependency>
		<groupId>org.apache.struts</groupId>
		<artifactId>struts-taglib</artifactId>
		<version>1.3.10</version>
	</dependency>

	<dependency>
		<groupId>org.apache.struts</groupId>
		<artifactId>struts-extras</artifactId>
		<version>1.3.10</version>
	</dependency>

	<!-- Quartz framework -->
	<dependency>
		<groupId>org.quartz-scheduler</groupId>
		<artifactId>quartz</artifactId>
		<version>2.1.5</version>
	</dependency>

2. Quartz Scheduler Job

Create a Quartz job to print a message.

File : SchedulerJob.java


package com.mkyong.common.quartz;

import org.quartz.Job;
import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;

public class SchedulerJob implements Job
{
	public void execute(JobExecutionContext context)
	throws JobExecutionException {

	   System.out.println("Print Print Struts 1.3 + Quartz 2.1.5 integration example ~");

	}
}

3. Struts Plug-in

Create a simple Struts plug-in and integrate the Quartz frameworks. In this plugin, during the Struts initialization, the init() method will be called and start the Quartz scheduler Job every 5 seconds.

File : QuartzPlugin.java


package com.mkyong.common.plugin;

import javax.servlet.ServletException;

import org.apache.struts.action.ActionServlet;
import org.apache.struts.action.PlugIn;
import org.apache.struts.config.ModuleConfig;
import org.quartz.CronScheduleBuilder;
import org.quartz.JobBuilder;
import org.quartz.JobDetail;
import org.quartz.Scheduler;
import org.quartz.SchedulerException;
import org.quartz.Trigger;
import org.quartz.TriggerBuilder;
import org.quartz.impl.StdSchedulerFactory;

import com.mkyong.common.quartz.SchedulerJob;

public class QuartzPlugin implements PlugIn {

	@Override
	public void destroy() {
		// null
	}

	@Override
	public void init(ActionServlet servlet, ModuleConfig config)
			throws ServletException {

		JobDetail job = JobBuilder.newJob(SchedulerJob.class)
			.withIdentity("anyJobName", "group1").build();

		try {

			Trigger trigger = TriggerBuilder
				.newTrigger()
				.withIdentity("anyTriggerName", "group1")
				.withSchedule(
					CronScheduleBuilder.cronSchedule("0/5 * * * * ?"))
				.build();

			Scheduler scheduler = new StdSchedulerFactory().getScheduler();
			scheduler.start();
			scheduler.scheduleJob(job, trigger);

		} catch (SchedulerException e) {
			e.printStackTrace();
		}

	}

}

4. Declares The Plugin

Include above Struts plug-in into the Struts configuration file (struts-config.xml).

File : struts-config.xml


<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE struts-config PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 1.3//EN"
"http://jakarta.apache.org/struts/dtds/struts-config_1_3.dtd">

<struts-config>

	<action-mappings>

	   <action path="/Welcome" type="org.apache.struts.actions.ForwardAction"
		parameter="/pages/quartz_started.jsp" />

	</action-mappings>

	<plug-in className="com.mkyong.common.plugin.QuartzPlugin" />

</struts-config>

5. Demo

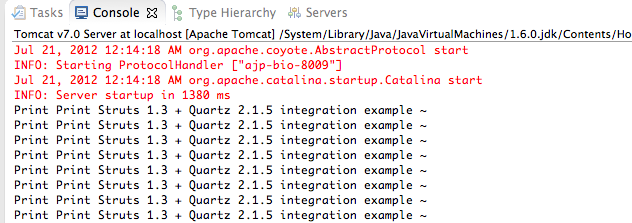

During Struts startup, fire the Quartz scheduler task.

struts and quartz 2 example

Download Source Code

Download it – Struts-Quartz-2-Example.zip (24 KB)

References

  1. Quartz Official Website
  2. Quartz 2 scheduler example
