Spring Security Custom Login Form Annotation Example

In this tutorial, we will convert previous Spring Security custom login form (XML) project to a pure annotation-based project.

Technologies used :

  1. Spring 3.2.8.RELEASE
  2. Spring Security 3.2.3.RELEASE
  3. Eclipse 4.2
  4. JDK 1.6
  5. Maven 3
  6. Tomcat 7 (Servlet 3.x)
Note
In this example, last Spring Security hello world annotation example will be reused, enhance it to support a custom login form.

1. Project Demo

2. Directory Structure

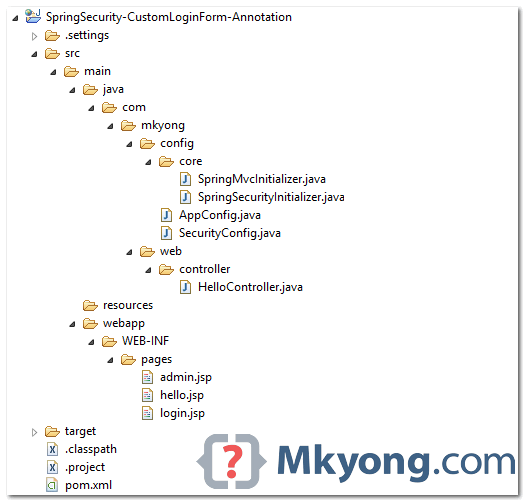

Review the final directory structure of this tutorial.

spring-security-custom-login-annotation-directory

3. Spring Security Configuration

Spring Security configuration via annotations.

SecurityConfig.java

package com.mkyong.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;

@Configuration
@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter {

	@Autowired
	public void configureGlobal(AuthenticationManagerBuilder auth) throws Exception {
		auth.inMemoryAuthentication()
                   .withUser("mkyong").password("123456").roles("USER");
	}

	//.csrf() is optional, enabled by default, if using WebSecurityConfigurerAdapter constructor
	@Override
	protected void configure(HttpSecurity http) throws Exception {

	    http.authorizeRequests()
		.antMatchers("/admin/**").access("hasRole('ROLE_USER')")
		.and()
		    .formLogin().loginPage("/login").failureUrl("/login?error")
		    .usernameParameter("username").passwordParameter("password")
		.and()
		    .logout().logoutSuccessUrl("/login?logout")
		.and()
		    .csrf();
	}
}

The equivalent of the Spring Security XML file :


	<http auto-config="true">
	  <intercept-url pattern="/admin**" access="ROLE_USER" />
	  <form-login
		login-page="/login"
	        default-target-url="/welcome"
		authentication-failure-url="/login?error"
		username-parameter="username"
		password-parameter="password" />
	  <logout logout-success-url="/login?logout" />
	  <!-- enable csrf protection -->
	  <csrf/>
	</http>

	<authentication-manager>
	  <authentication-provider>
	    <user-service>
		<user name="mkyong" password="123456" authorities="ROLE_USER" />
	    </user-service>
	  </authentication-provider>
	</authentication-manager>

4. Custom Login Form

4.1 Page to display the custom login form. If CSRF protection is enabled, remember to add ${_csrf.token} in both login and logout form.

login.jsp

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<html>
<head>
<title>Login Page</title>
<style>
.error {
	padding: 15px;
	margin-bottom: 20px;
	border: 1px solid transparent;
	border-radius: 4px;
	color: #a94442;
	background-color: #f2dede;
	border-color: #ebccd1;
}

.msg {
	padding: 15px;
	margin-bottom: 20px;
	border: 1px solid transparent;
	border-radius: 4px;
	color: #31708f;
	background-color: #d9edf7;
	border-color: #bce8f1;
}

#login-box {
	width: 300px;
	padding: 20px;
	margin: 100px auto;
	background: #fff;
	-webkit-border-radius: 2px;
	-moz-border-radius: 2px;
	border: 1px solid #000;
}
</style>
</head>
<body onload='document.loginForm.username.focus();'>

	<h1>Spring Security Custom Login Form (Annotation)</h1>

	<div id="login-box">

		<h2>Login with Username and Password</h2>

		<c:if test="${not empty error}">
			<div class="error">${error}</div>
		</c:if>
		<c:if test="${not empty msg}">
			<div class="msg">${msg}</div>
		</c:if>

		<form name='loginForm'
		    action="<c:url value='j_spring_security_check' />" method='POST'>

		    <table>
			<tr>
				<td>User:</td>
				<td><input type='text' name='user' value=''></td>
			</tr>
			<tr>
				<td>Password:</td>
				<td><input type='password' name='pass' /></td>
			</tr>
			<tr>
			        <td colspan='2'>
                                <input name="submit" type="submit" value="submit" />
                                </td>
			</tr>
		   </table>

		   <input type="hidden"
                     name="${_csrf.parameterName}" value="${_csrf.token}" />
		</form>
	</div>

</body>
</html>

4.2 Page to display the welcome message, default page.

hello.jsp

<%@page session="false"%>
<html>
<body>
	<h1>Title : ${title}</h1>
	<h1>Message : ${message}</h1>
</body>
</html>

4.3 This page is password protected, only authenticated user is allowed to access.

admin.jsp + logout

<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<%@page session="true"%>
<html>
<body>
	<h1>Title : ${title}</h1>
	<h1>Message : ${message}</h1>

	<c:url value="/j_spring_security_logout" var="logoutUrl" />

		<!-- csrt support -->
	<form action="${logoutUrl}" method="post" id="logoutForm">
		<input type="hidden"
			name="${_csrf.parameterName}"
			value="${_csrf.token}" />
	</form>

	<script>
		function formSubmit() {
			document.getElementById("logoutForm").submit();
		}
	</script>

	<c:if test="${pageContext.request.userPrincipal.name != null}">
		<h2>
			Welcome : ${pageContext.request.userPrincipal.name} | <a
				href="javascript:formSubmit()"> Logout</a>
		</h2>
	</c:if>

</body>
</html>

5. Spring MVC Controller

A simple controller.

HelloController.java

package com.mkyong.web.controller;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.servlet.ModelAndView;

@Controller
public class HelloController {

	@RequestMapping(value = { "/", "/welcome**" }, method = RequestMethod.GET)
	public ModelAndView welcomePage() {

		ModelAndView model = new ModelAndView();
		model.addObject("title", "Spring Security Custom Login Form");
		model.addObject("message", "This is welcome page!");
		model.setViewName("hello");
		return model;

	}

	@RequestMapping(value = "/admin**", method = RequestMethod.GET)
	public ModelAndView adminPage() {

		ModelAndView model = new ModelAndView();
		model.addObject("title", "Spring Security Custom Login Form");
		model.addObject("message", "This is protected page!");
		model.setViewName("admin");

		return model;

	}

	//Spring Security see this :
	@RequestMapping(value = "/login", method = RequestMethod.GET)
	public ModelAndView login(
		@RequestParam(value = "error", required = false) String error,
		@RequestParam(value = "logout", required = false) String logout) {

		ModelAndView model = new ModelAndView();
		if (error != null) {
			model.addObject("error", "Invalid username and password!");
		}

		if (logout != null) {
			model.addObject("msg", "You've been logged out successfully.");
		}
		model.setViewName("login");

		return model;

	}

}

6. Initializer Classes

Here are the Initializer classes to make this a pure annotation-based project.

6.1 Initializer class to enable the Spring Security configuration.

SpringSecurityInitializer.java

package com.mkyong.config.core;

import org.springframework.security.web.context.AbstractSecurityWebApplicationInitializer;
public class SpringSecurityInitializer extends AbstractSecurityWebApplicationInitializer {

}

6.2 Initializer class to enable the Spring MVC.

SpringMvcInitializer.java

package com.mkyong.config.core;

import org.springframework.web.servlet.support.AbstractAnnotationConfigDispatcherServletInitializer;
import com.mkyong.config.AppConfig;

public class SpringMvcInitializer
	extends AbstractAnnotationConfigDispatcherServletInitializer {

	@Override
	protected Class<?>[] getRootConfigClasses() {
		return new Class[] { AppConfig.class };
	}

	@Override
	protected Class<?>[] getServletConfigClasses() {
		return null;
	}

	@Override
	protected String[] getServletMappings() {
		return new String[] { "/" };
	}

}
AppConfig.java

package com.mkyong.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Import;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.view.InternalResourceViewResolver;
import org.springframework.web.servlet.view.JstlView;

@EnableWebMvc
@Configuration
@ComponentScan({ "com.mkyong.web.*" })
@Import({ SecurityConfig.class })
public class AppConfig {

	@Bean
	public InternalResourceViewResolver viewResolver() {
		InternalResourceViewResolver viewResolver
                           = new InternalResourceViewResolver();
		viewResolver.setViewClass(JstlView.class);
		viewResolver.setPrefix("/WEB-INF/pages/");
		viewResolver.setSuffix(".jsp");
		return viewResolver;
	}

}

7. Demo

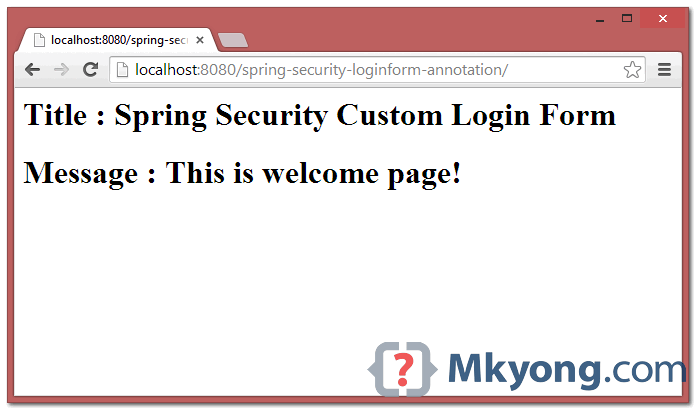

7.1. Welcome Page – http://localhost:8080/spring-security-loginform-annotation/

spring-security-custom-login-annotation-welcome

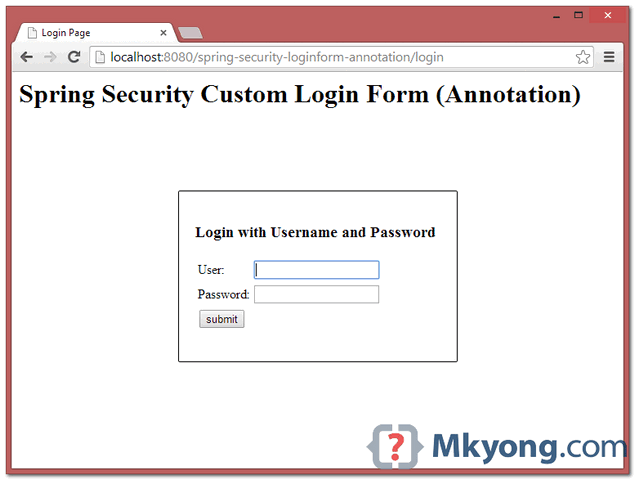

7.2 Try to access /admin page, your custom login form is displayed.

spring-security-custom-login-annotation-login

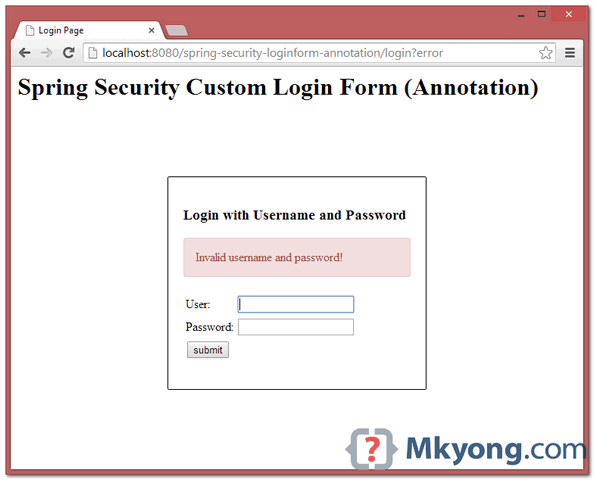

7.3. If username and password is incorrect, display /login?error.

spring-security-custom-login-annotation-error

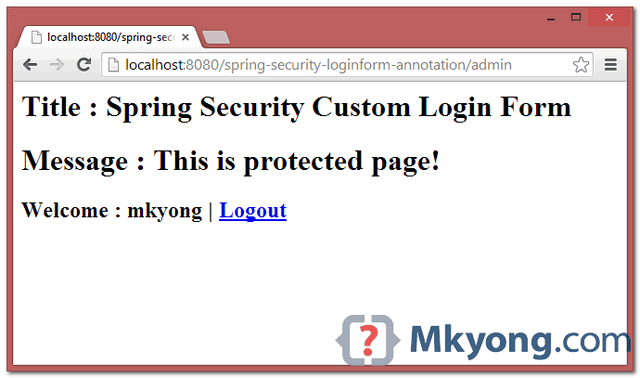

7.4. If username and password are correct, Spring will redirect the request to the original requested URL and display the page.

spring-security-custom-login-annotation-admin

7.5. Try to log out, it will redirect to /login?logout page.

spring-security-custom-login-annotation-logout

Download Source Code

References

  1. Spring Security Hello World Annotation Example
  2. Creating a Custom Login Form
  3. Spring Security 3.2.0.RC1 Highlights: CSRF Protection
  4. Wikipedia : Cross-site request forgery
