Spring Boot SLF4j Logback example

spring boot slf4j logback

In this tutorial, we will show you how to use Logback in Spring Boot framework.

Technologies used :

  • Spring Boot 2.1.2.RELEASE
  • Spring 5.1.4.RELEASE
  • Logback 1.2.3
  • Maven 3
  • Java 8

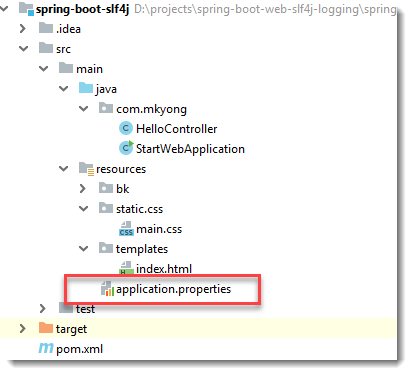

1. Project Directory

project directory

2. Maven

In Spring Boot, Logback is the default logging framework, just add spring-boot-starter-web, it will pull in the logback dependencies.

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
		 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <artifactId>spring-boot-slf4j</artifactId>
    <packaging>jar</packaging>
    <name>Spring Boot SLF4j</name>
    <version>1.0</version>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.2.RELEASE</version>
    </parent>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <optional>true</optional>
        </dependency>

    </dependencies>
    <build>
        <plugins>
            <!-- Package as an executable jar/war -->
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>2.22.0</version>
            </plugin>
        </plugins>
    </build>
</project>

Display the project dependencies.


$ mvn dependency:tree

+- org.springframework.boot:spring-boot-starter-web:jar:2.1.2.RELEASE:compile
[INFO] |  +- org.springframework.boot:spring-boot-starter:jar:2.1.2.RELEASE:compile
[INFO] |  |  +- org.springframework.boot:spring-boot-starter-logging:jar:2.1.2.RELEASE:compile
[INFO] |  |  |  +- ch.qos.logback:logback-classic:jar:1.2.3:compile
[INFO] |  |  |  |  \- ch.qos.logback:logback-core:jar:1.2.3:compile

$ mvn dependency:tree

org.springframework.boot:spring-boot-slf4j:jar:1.0
[INFO] +- org.springframework.boot:spring-boot-starter-web:jar:2.1.2.RELEASE:compile
[INFO] |  +- org.springframework.boot:spring-boot-starter:jar:2.1.2.RELEASE:compile
[INFO] |  |  +- org.springframework.boot:spring-boot-starter-logging:jar:2.1.2.RELEASE:compile
[INFO] |  |  |  +- ch.qos.logback:logback-classic:jar:1.2.3:compile
[INFO] |  |  |  |  \- ch.qos.logback:logback-core:jar:1.2.3:compile
[INFO] |  |  |  +- org.apache.logging.log4j:log4j-to-slf4j:jar:2.11.1:compile
[INFO] |  |  |  |  \- org.apache.logging.log4j:log4j-api:jar:2.11.1:compile
[INFO] |  |  |  \- org.slf4j:jul-to-slf4j:jar:1.7.25:compile
[INFO] |  |  +- javax.annotation:javax.annotation-api:jar:1.3.2:compile
[INFO] |  |  +- org.springframework:spring-core:jar:5.1.4.RELEASE:compile
[INFO] |  |  |  \- org.springframework:spring-jcl:jar:5.1.4.RELEASE:compile
[INFO] |  |  \- org.yaml:snakeyaml:jar:1.23:runtime
[INFO] |  +- org.springframework.boot:spring-boot-starter-json:jar:2.1.2.RELEASE:compile
[INFO] |  |  +- com.fasterxml.jackson.core:jackson-databind:jar:2.9.8:compile
[INFO] |  |  |  +- com.fasterxml.jackson.core:jackson-annotations:jar:2.9.0:compile
[INFO] |  |  |  \- com.fasterxml.jackson.core:jackson-core:jar:2.9.8:compile
[INFO] |  |  +- com.fasterxml.jackson.datatype:jackson-datatype-jdk8:jar:2.9.8:compile
[INFO] |  |  +- com.fasterxml.jackson.datatype:jackson-datatype-jsr310:jar:2.9.8:compile
[INFO] |  |  \- com.fasterxml.jackson.module:jackson-module-parameter-names:jar:2.9.8:compile
[INFO] |  +- org.springframework.boot:spring-boot-starter-tomcat:jar:2.1.2.RELEASE:compile
[INFO] |  |  +- org.apache.tomcat.embed:tomcat-embed-core:jar:9.0.14:compile
[INFO] |  |  +- org.apache.tomcat.embed:tomcat-embed-el:jar:9.0.14:compile
[INFO] |  |  \- org.apache.tomcat.embed:tomcat-embed-websocket:jar:9.0.14:compile
[INFO] |  +- org.hibernate.validator:hibernate-validator:jar:6.0.14.Final:compile
[INFO] |  |  +- javax.validation:validation-api:jar:2.0.1.Final:compile
[INFO] |  |  +- org.jboss.logging:jboss-logging:jar:3.3.2.Final:compile
[INFO] |  |  \- com.fasterxml:classmate:jar:1.4.0:compile
[INFO] |  +- org.springframework:spring-web:jar:5.1.4.RELEASE:compile
[INFO] |  |  \- org.springframework:spring-beans:jar:5.1.4.RELEASE:compile
[INFO] |  \- org.springframework:spring-webmvc:jar:5.1.4.RELEASE:compile
[INFO] |     +- org.springframework:spring-aop:jar:5.1.4.RELEASE:compile
[INFO] |     +- org.springframework:spring-context:jar:5.1.4.RELEASE:compile
[INFO] |     \- org.springframework:spring-expression:jar:5.1.4.RELEASE:compile
[INFO] +- org.springframework.boot:spring-boot-starter-thymeleaf:jar:2.1.2.RELEASE:compile
[INFO] |  +- org.thymeleaf:thymeleaf-spring5:jar:3.0.11.RELEASE:compile
[INFO] |  |  +- org.thymeleaf:thymeleaf:jar:3.0.11.RELEASE:compile
[INFO] |  |  |  +- org.attoparser:attoparser:jar:2.0.5.RELEASE:compile
[INFO] |  |  |  \- org.unbescape:unbescape:jar:1.1.6.RELEASE:compile
[INFO] |  |  \- org.slf4j:slf4j-api:jar:1.7.25:compile
[INFO] |  \- org.thymeleaf.extras:thymeleaf-extras-java8time:jar:3.0.2.RELEASE:compile
[INFO] \- org.springframework.boot:spring-boot-devtools:jar:2.1.2.RELEASE:compile (optional)
[INFO]    +- org.springframework.boot:spring-boot:jar:2.1.2.RELEASE:compile
[INFO]    \- org.springframework.boot:spring-boot-autoconfigure:jar:2.1.2.RELEASE:compile

3. application.properties

3.1 Configure the logging in application.properties

application.properties

# logging level
logging.level.org.springframework=ERROR
logging.level.com.mkyong=DEBUG

# output to a file
logging.file=app.log

# temp folder example
#logging.file=${java.io.tmpdir}/app.log

logging.pattern.file=%d %p %c{1.} [%t] %m%n

logging.pattern.console=%d{HH:mm:ss.SSS} [%t] %-5level %logger{36} - %msg%n

## if no active profile, default is 'default'
##spring.profiles.active=prod

# root level
#logging.level.=INFO

3.2 This is the equivalent in YAML format.

application.yml

logging:
  level:
    org.springframework: ERROR
    com.mkyong: DEBUG
  pattern:
    console: "%d{HH:mm:ss.SSS} [%t] %-5level %logger{36} - %msg%n"
    file: "%d %p %c{1.} [%t] %m%n"
  file: app.log

4. logback.xml

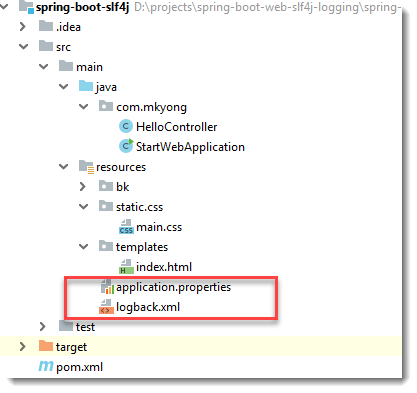

The above logging configuration is sufficient for development. For production, we need more logging features like file rolling or SMTP. In Spring Boot, we still allow to configure logback via the standard logback.xml

project directory
logback.xml

<?xml version="1.0" encoding="UTF-8"?>
<configuration>

    <property name="HOME_LOG" value="logs/app.log"/>

    <appender name="FILE-ROLLING" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <file>${HOME_LOG}</file>

        <rollingPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedRollingPolicy">
            <fileNamePattern>logs/archived/app.%d{yyyy-MM-dd}.%i.log</fileNamePattern>
            <!-- each archived file, size max 10MB -->
            <maxFileSize>10MB</maxFileSize>
            <!-- total size of all archive files, if total size > 20GB,
				it will delete old archived file -->
            <totalSizeCap>20GB</totalSizeCap>
            <!-- 60 days to keep -->
            <maxHistory>60</maxHistory>
        </rollingPolicy>

        <encoder>
            <pattern>%d %p %c{1.} [%t] %m%n</pattern>
        </encoder>
    </appender>

    <logger name="com.mkyong" level="debug" additivity="false">
        <appender-ref ref="FILE-ROLLING"/>
    </logger>

    <root level="error">
        <appender-ref ref="FILE-ROLLING"/>
    </root>

</configuration>

5. Spring Boot logging by Profile

Note
Read this – Profile-specific configuration

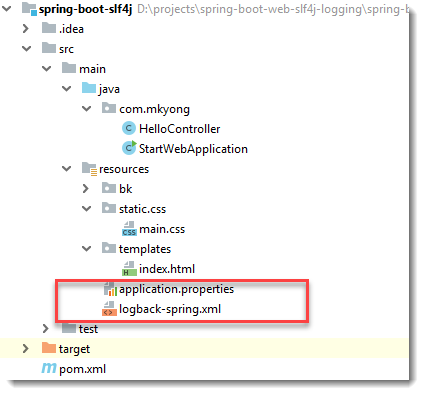

To take advantage of the templating features provided by Spring Boot, we can create a logback-spring.xml in the root of the classpath.

project directory

In below configuration :

  • If no active profile (default), logs to console.
  • If the profile is prod, logs to a rolling file.
logback-spring.xml

<?xml version="1.0" encoding="UTF-8"?>
<configuration>
    <include resource="org/springframework/boot/logging/logback/defaults.xml" />

    <springProfile name="default">
        <include resource="org/springframework/boot/logging/logback/console-appender.xml"/>

        <root level="INFO">
            <appender-ref ref="CONSOLE"/>
        </root>
    </springProfile>

    <springProfile name="prod">

        <appender name="FILE-ROLLING" class="ch.qos.logback.core.rolling.RollingFileAppender">
            <file>app.log</file>

            <rollingPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedRollingPolicy">
                <fileNamePattern>logs/archived/app.%d{yyyy-MM-dd}.%i.log</fileNamePattern>
                <!-- each archived file, size max 10MB -->
                <maxFileSize>10MB</maxFileSize>
                <!-- total size of all archive files, if total size > 20GB, it will delete old archived file -->
                <totalSizeCap>20GB</totalSizeCap>
                <!-- 60 days to keep -->
                <maxHistory>60</maxHistory>
            </rollingPolicy>

            <encoder>
                <pattern>%d %p %c{1.} [%t] %m%n</pattern>
            </encoder>
        </appender>

        <logger name="org.springframework" level="INFO"/>
        <logger name="com.mkyong" level="DEBUG"/>
        <root level="ERROR">
            <appender-ref ref="FILE-ROLLING"/>
        </root>
    </springProfile>

</configuration>

Define a spring.profiles.active property to set the current active profile.

application.properties

## if no active profile, default is 'default'
spring.profiles.active=prod

6. Hello Logback

6.1 A simple Spring MVC web application, logs something.

HelloController.java

package com.mkyong;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;

import java.util.Arrays;
import java.util.List;

@Controller
public class HelloController {

    private static final Logger logger = LoggerFactory.getLogger(HelloController.class);

    @GetMapping("/")
    public String hello(Model model) {

        List<Integer> data = Arrays.asList(1, 2, 3, 4, 5);

        logger.debug("Hello from Logback {}", data);

        model.addAttribute("num", data);

        return "index"; // index.html
    }

}

6.2 Template

src/resources/templates/index.html

<!DOCTYPE HTML>
<html xmlns:th="http://www.thymeleaf.org">
<head>
    <title>Spring Boot SLF4j Logback</title>
    <link rel="stylesheet" th:href="@{/css/main.css}" href="../../css/main.css"/>
</head>
<body>

<h1>Spring Boot + SLF4j Logback example</h1>
<ul>
    <li th:each="n : ${num}" th:text="${n}"></li>
</ul>

</body>
</html>

6.3 CSS

src/resources/static/css/main.css

h1{
	color:#0000FF;
}

7. Demo

7.1 Start Spring Boot

StartWebApplication.java

package com.mkyong;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class StartWebApplication {

	public static void main(String[] args) {
		SpringApplication.run(StartWebApplication.class, args);
	}

}

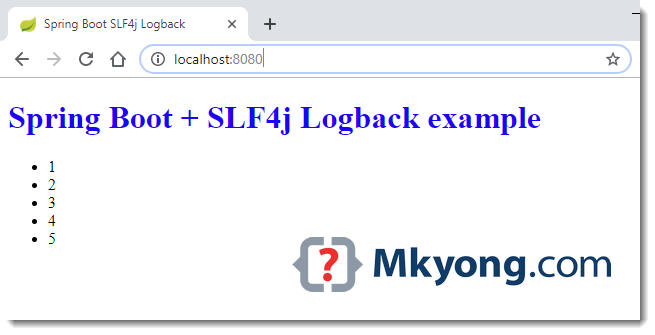

http://localhost:8080

demo
Terminal

15:15:11.588 [http-nio-8080-exec-1] DEBUG com.mkyong.HelloController - Hello from Logback [1, 2, 3, 4, 5]

Download Source Code

$ git clone https://github.com/mkyong/spring-boot.git
$ cd logging-slf4j-logback
$ mvn spring-boot:run

Access localhost:8080
Review the console for logging info.

References

About the Author

author image
mkyong
Founder of Mkyong.com, love Java and open source stuff. Follow him on Twitter. If you like my tutorials, consider make a donation to these charities.

Comments

avatar
7 Comment threads
3 Thread replies
1 Followers

Most reacted comment
Hottest comment thread
7 Comment authors
Hitesh KumarmkyongSubhashanuoCarol Recent comment authors
newest oldest most voted
Thrinath
Guest
Thrinath

“4. Spring Boot logging by Profile” is not working from me.

Do I need to specify the following anywhere ?
LOG_PATH, LOG_TEMP, ${FILE_LOG_PATTERN}

Hitesh Kumar
Guest
Hitesh Kumar

can i attach logback appender in properties file.
I don’t want to use logback-spring.xml

Subhash
Guest
Subhash

How to add smtp to this?

anuo
Guest
anuo

good

Carol
Guest
Carol

Thank you very much. Good article!

Carol
Guest
Carol

Thanks

Amit
Guest
Amit

# root logging level, warning : too much output
logging.level.=DEBUG ,

For above Configuration , too much output is coming … Can we control this , So that can log only Custom Logging on Console as well as in File also.
