Spring Boot Log4j 2 example

spring boot log4j 2

In this tutorial, we will show you how to use Apache Log4j 2 in Spring Boot framework.

Technologies used :

  • Spring Boot 2.1.2.RELEASE
  • Spring 5.1.4.RELEASE
  • Log4j 2.11.1
  • Maven 3
  • Java 8

1. Project Directory

project directory

2. Maven

The key is exclude the default logback, and include log4j with spring-boot-starter-log4j2

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
	http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <artifactId>logging-log4j2</artifactId>
    <packaging>jar</packaging>
    <name>Spring Boot log4j2 Example</name>
    <url>https://www.mkyong.com</url>
    <version>1.0</version>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.2.RELEASE</version>
    </parent>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>

        <!-- exclude logback , add log4j2 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-starter-logging</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-log4j2</artifactId>
        </dependency>

        <!-- asynchronous loggers -->
        <dependency>
            <groupId>com.lmax</groupId>
            <artifactId>disruptor</artifactId>
            <version>3.4.2</version>
        </dependency>

        <!-- for log4j2.yml, need jackson-databind and jackson-dataformat-yaml -->
        <!-- spring-boot-starter-web -> spring-boot-starter-json -> jackson-databind-->
        <!-- included by spring boot
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
        </dependency>
        -->

        <dependency>
            <groupId>com.fasterxml.jackson.dataformat</groupId>
            <artifactId>jackson-dataformat-yaml</artifactId>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <!-- Package as an executable jar/war -->
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>

            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>2.22.0</version>
            </plugin>

        </plugins>
    </build>
</project>

Display the project dependencies.


$ mvn dependency:tree

[INFO] \- org.springframework.boot:spring-boot-starter-log4j2:jar:2.1.2.RELEASE:compile
[INFO]    +- org.apache.logging.log4j:log4j-slf4j-impl:jar:2.11.1:compile <--- slf4j to log4j bridge
[INFO]    |  \- org.apache.logging.log4j:log4j-api:jar:2.11.1:compile
[INFO]    +- org.apache.logging.log4j:log4j-core:jar:2.11.1:compile
[INFO]    +- org.apache.logging.log4j:log4j-jul:jar:2.11.1:compile
[INFO]    \- org.slf4j:jul-to-slf4j:jar:1.7.25:compile

$ mvn dependency:tree

[INFO] org.springframework.boot:logging-log4j2:jar:1.0
[INFO] +- org.springframework.boot:spring-boot-starter-web:jar:2.1.2.RELEASE:compile
[INFO] |  +- org.springframework.boot:spring-boot-starter-json:jar:2.1.2.RELEASE:compile
[INFO] |  |  +- com.fasterxml.jackson.core:jackson-databind:jar:2.9.8:compile
[INFO] |  |  |  \- com.fasterxml.jackson.core:jackson-annotations:jar:2.9.0:compile
[INFO] |  |  +- com.fasterxml.jackson.datatype:jackson-datatype-jdk8:jar:2.9.8:compile
[INFO] |  |  +- com.fasterxml.jackson.datatype:jackson-datatype-jsr310:jar:2.9.8:compile
[INFO] |  |  \- com.fasterxml.jackson.module:jackson-module-parameter-names:jar:2.9.8:compile
[INFO] |  +- org.springframework.boot:spring-boot-starter-tomcat:jar:2.1.2.RELEASE:compile
[INFO] |  |  +- org.apache.tomcat.embed:tomcat-embed-core:jar:9.0.14:compile
[INFO] |  |  +- org.apache.tomcat.embed:tomcat-embed-el:jar:9.0.14:compile
[INFO] |  |  \- org.apache.tomcat.embed:tomcat-embed-websocket:jar:9.0.14:compile
[INFO] |  +- org.hibernate.validator:hibernate-validator:jar:6.0.14.Final:compile
[INFO] |  |  +- javax.validation:validation-api:jar:2.0.1.Final:compile
[INFO] |  |  +- org.jboss.logging:jboss-logging:jar:3.3.2.Final:compile
[INFO] |  |  \- com.fasterxml:classmate:jar:1.4.0:compile
[INFO] |  +- org.springframework:spring-web:jar:5.1.4.RELEASE:compile
[INFO] |  |  \- org.springframework:spring-beans:jar:5.1.4.RELEASE:compile
[INFO] |  \- org.springframework:spring-webmvc:jar:5.1.4.RELEASE:compile
[INFO] |     +- org.springframework:spring-aop:jar:5.1.4.RELEASE:compile
[INFO] |     +- org.springframework:spring-context:jar:5.1.4.RELEASE:compile
[INFO] |     \- org.springframework:spring-expression:jar:5.1.4.RELEASE:compile
[INFO] +- org.springframework.boot:spring-boot-starter-thymeleaf:jar:2.1.2.RELEASE:compile
[INFO] |  +- org.thymeleaf:thymeleaf-spring5:jar:3.0.11.RELEASE:compile
[INFO] |  |  +- org.thymeleaf:thymeleaf:jar:3.0.11.RELEASE:compile
[INFO] |  |  |  +- org.attoparser:attoparser:jar:2.0.5.RELEASE:compile
[INFO] |  |  |  \- org.unbescape:unbescape:jar:1.1.6.RELEASE:compile
[INFO] |  |  \- org.slf4j:slf4j-api:jar:1.7.25:compile
[INFO] |  \- org.thymeleaf.extras:thymeleaf-extras-java8time:jar:3.0.2.RELEASE:compile
[INFO] +- org.springframework.boot:spring-boot-starter:jar:2.1.2.RELEASE:compile
[INFO] |  +- org.springframework.boot:spring-boot:jar:2.1.2.RELEASE:compile
[INFO] |  +- org.springframework.boot:spring-boot-autoconfigure:jar:2.1.2.RELEASE:compile
[INFO] |  +- javax.annotation:javax.annotation-api:jar:1.3.2:compile
[INFO] |  +- org.springframework:spring-core:jar:5.1.4.RELEASE:compile
[INFO] |  |  \- org.springframework:spring-jcl:jar:5.1.4.RELEASE:compile
[INFO] |  \- org.yaml:snakeyaml:jar:1.23:compile
[INFO] +- org.springframework.boot:spring-boot-starter-log4j2:jar:2.1.2.RELEASE:compile
[INFO] |  +- org.apache.logging.log4j:log4j-slf4j-impl:jar:2.11.1:compile
[INFO] |  |  \- org.apache.logging.log4j:log4j-api:jar:2.11.1:compile
[INFO] |  +- org.apache.logging.log4j:log4j-core:jar:2.11.1:compile
[INFO] |  +- org.apache.logging.log4j:log4j-jul:jar:2.11.1:compile
[INFO] |  \- org.slf4j:jul-to-slf4j:jar:1.7.25:compile
[INFO] +- com.lmax:disruptor:jar:3.4.2:compile
[INFO] \- com.fasterxml.jackson.dataformat:jackson-dataformat-yaml:jar:2.9.8:compile
[INFO]    \- com.fasterxml.jackson.core:jackson-core:jar:2.9.8:compile

3. log4j2.xml

3.1 Create a log4j2.xml in the project class path, src/resources/

src/resources/log4j2.xml

<?xml version="1.0" encoding="UTF-8"?>
<Configuration status="DEBUG">
    <Appenders>
        <Console name="LogToConsole" target="SYSTEM_OUT">
            <PatternLayout pattern="%d{HH:mm:ss.SSS} [%t] %-5level %logger{36} - %msg%n"/>
        </Console>
        <File name="LogToFile" fileName="logs/app.log">
            <PatternLayout>
                <Pattern>%d %p %c{1.} [%t] %m%n</Pattern>
            </PatternLayout>
        </File>
    </Appenders>
    <Loggers>
        <Logger name="com.mkyong" level="debug" additivity="false">
            <AppenderRef ref="LogToFile"/>
            <AppenderRef ref="LogToConsole"/>
        </Logger>
        <Logger name="org.springframework.boot" level="error" additivity="false">
            <AppenderRef ref="LogToConsole"/>
        </Logger>
        <Root level="error">
            <AppenderRef ref="LogToFile"/>
            <AppenderRef ref="LogToConsole"/>
        </Root>
    </Loggers>
</Configuration>

3.2 For log4j2.yml, we need to include jackson-databind and jackson-dataformat-yaml, since the jackson-databind is already included with Spring Boot Starter, so, we just need to include jackson-dataformat-yaml

pom.xml

	<!-- spring-boot-starter-web -> spring-boot-starter-json -> jackson-databind-->
	<!-- included by spring boot
	<dependency>
		<groupId>com.fasterxml.jackson.core</groupId>
		<artifactId>jackson-databind</artifactId>
	</dependency>
	-->

	<dependency>
		<groupId>com.fasterxml.jackson.dataformat</groupId>
		<artifactId>jackson-dataformat-yaml</artifactId>
	</dependency>
log4j2.yml

Configuration:
  status: debug

  appenders:
    Console:
      name: LogToConsole
      PatternLayout:
        Pattern: "[%-5level] %d{yyyy-MM-dd HH:mm:ss.SSS} [%t] %c{1} - %msg%n"

    RollingFile:
      - name: LogToRollingFile
        fileName: logs/app.log
        filePattern: "logs/$${date:yyyy-MM}/app-%d{MM-dd-yyyy}-%i.log.gz"
        PatternLayout:
          pattern: "[%-5level] %d{yyyy-MM-dd HH:mm:ss.SSS} [%t] %c{1} - %msg%n"
        Policies:
          SizeBasedTriggeringPolicy:
            size: 10MB
        DefaultRollOverStrategy:
          max: 10

  Loggers:
    logger:
      - name: com.mkyong
        level: debug
        additivity: false
        AppenderRef:
          - ref: LogToConsole
          - ref: LogToRollingFile

    Root:
      level: error
      AppenderRef:
        ref: LogToConsole

4. Hello log4j2

4.1 A simple Spring MVC web application, logging with log4j2.

HelloController.java

package com.mkyong;

import org.apache.logging.log4j.LogManager;
import org.apache.logging.log4j.Logger;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;

import java.util.Arrays;
import java.util.List;

@Controller
public class HelloController {

    private static final Logger logger = LogManager.getLogger(HelloController.class);

    private List<Integer> num = Arrays.asList(1, 2, 3, 4, 5);

    @GetMapping("/")
    public String main(Model model) {

        // pre-java 8
        if (logger.isDebugEnabled()) {
            logger.debug("Hello from Log4j 2 - num : {}", num);
        }

        // java 8 lambda, no need to check log level
        logger.debug("Hello from Log4j 2 - num : {}", () -> num);

        model.addAttribute("tasks", num);
        return "welcome"; //view
    }

    private int getNum() {
        return 100;
    }

}

4.2 Template

src/resources/templates/welcome.html

<!DOCTYPE HTML>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head></head>
<body>

<h1>Spring Boot + log4j2 example</h1>
<ul>
    <li th:each="task : ${tasks}" th:text="${task}"></li>
</ul>

</body>
</html>

5. Demo

5.1 Start Spring Boot

StartApplication.java

package com.mkyong;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class StartApplication {

    public static void main(String[] args) {
        SpringApplication.run(StartApplication.class, args);
    }

}

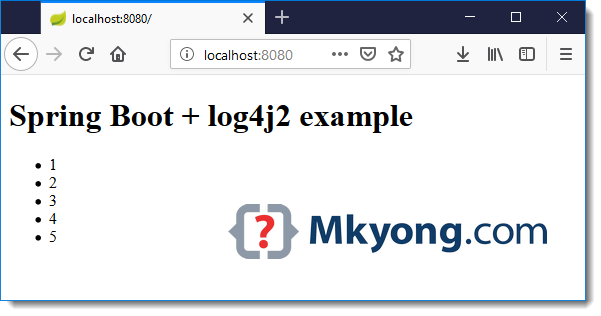

http://localhost:8080

demo

Review the logging :

Terminal

19:10:08.723 [http-nio-8080-exec-1] DEBUG com.mkyong.HelloController - Hello from Log4j 2 - num : [1, 2, 3, 4, 5]
19:10:08.724 [http-nio-8080-exec-1] DEBUG com.mkyong.HelloController - Hello from Log4j 2 - num : [1, 2, 3, 4, 5]

6. Log4j 2 - Asynchronous Loggers

6.1 To enable asynchronous logging, we need to include disruptor

pom.xml

	<dependency>
		<groupId>com.lmax</groupId>
		<artifactId>disruptor</artifactId>
		<version>3.4.2</version>
	</dependency>

6.2 Set the system property log4j2.contextSelector=org.apache.logging.log4j.core.async.AsyncLoggerContextSelector

Terminal

$ mvn package

$ java -Dlog4j2.contextSelector=org.apache.logging.log4j.core.async.AsyncLoggerContextSelector -jar target/logging-log4j2-1.0.jar

019-03-27 19:28:57,185 main DEBUG Registering MBean org.apache.logging.log4j2:type=AsyncContext@578486a3
2019-03-27 19:28:57,189 main DEBUG Registering MBean org.apache.logging.log4j2:type=AsyncContext@578486a3,component=AsyncLoggerRingBuffer
2019-03-27 19:28:57,194 main DEBUG Registering MBean org.apache.logging.log4j2:type=AsyncContext@578486a3,component=StatusLogger
2019-03-27 19:28:57,195 main DEBUG Registering MBean org.apache.logging.log4j2:type=AsyncContext@578486a3,component=ContextSelector
2019-03-27 19:28:57,195 main DEBUG Registering MBean org.apache.logging.log4j2:type=AsyncContext@578486a3,component=Loggers,name=org.springframework.boot
2019-03-27 19:28:57,196 main DEBUG Registering MBean org.apache.logging.log4j2:type=AsyncContext@578486a3,component=Loggers,name=
2019-03-27 19:28:57,196 main DEBUG Registering MBean org.apache.logging.log4j2:type=AsyncContext@578486a3,component=Loggers,name=com.mkyong
2019-03-27 19:28:57,197 main DEBUG Registering MBean org.apache.logging.log4j2:type=AsyncContext@578486a3,component=Appenders,name=LogToConsole
2019-03-27 19:28:57,200 main DEBUG Registering MBean org.apache.logging.log4j2:type=AsyncContext@578486a3,component=Appenders,name=LogToFile

Download Source Code

$ git clone https://github.com/mkyong/spring-boot.git
$ cd logging-log4j2
$ mvn spring-boot:run
Access localhost:8080

$ mvn package
$ java -Dlog4j2.contextSelector=org.apache.logging.log4j.core.async.AsyncLoggerContextSelector -jar target/logging-log4j2-1.0.jar
Access localhost:8080

References

About the Author

author image
mkyong
Founder of Mkyong.com, love Java and open source stuff. Follow him on Twitter, or befriend him on Facebook or Google Plus. If you like my tutorials, consider make a donation to these charities.

Comments

avatar
