Eclipse + Tomcat – java.lang.OutOfMemoryError: Java heap space

In Eclipse IDE, run a Java web application with Tomcat server plugin, but the console prompts


Exception in thread "x"
	java.lang.OutOfMemoryError: Java heap space

1. Solution – Increase Heap Size in Tomcat

By default, Tomcat allocated a small amount of heap size. To solve it, you need to increase the Tomcat’s heap size manually.

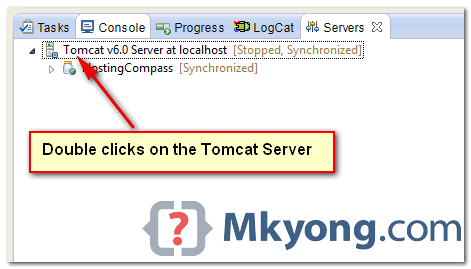

1.1 In server view, double clicks on the Tomcat Server icon.

tomcat-eclipse-heap-size-1

1.2 Clicks on the “Open launch configuration” link.

tomcat-eclipse-heap-size-2

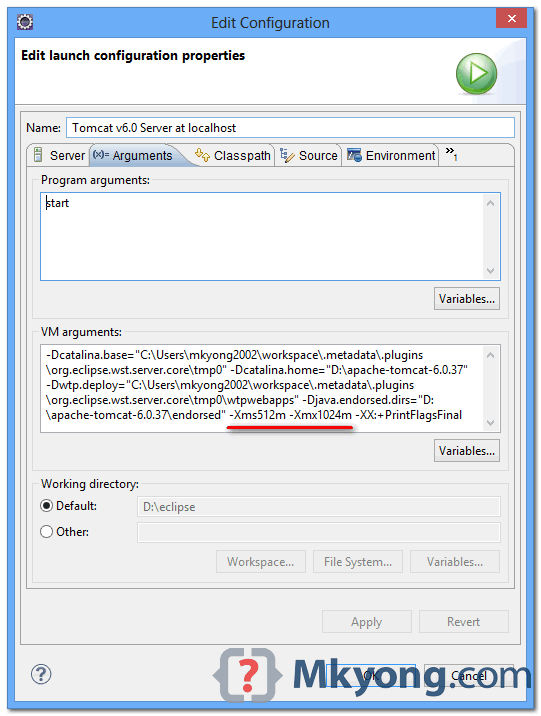

1.3 Clicks on the “Arguments” tab, and append the following VM options at the end of the VM arguments :


-Xms<size> - Set initial Java heap size
-Xmx<size> - Set maximum Java heap size

In this example, we increase the heap size to -Xms512m -Xmx1024m, it should be enough for most of the projects.

tomcat-eclipse-heap-size-3

2. Know Your Heap Size

To know how much heap size is allocated in Tomcat, append this VM option -XX:+PrintFlagsFinal (refer figure 1.3). Start Tomcat, you will noticed the entire VM values are dump to the console, find following names :

  1. InitialHeapSize
  2. MaxHeapSize
tomcat-eclipse-heap-size-4

P.S The value is in bytes.

References

  1. Java heap memory size
