Container Authentication with JAX-WS – (Tomcat version)

In this article, we show you how to implement container authentication with JAX-WS, under Tomcat 6.0. In this way, the authentication is declarative rather than programmatic like this – application authentication in JAX-WS. And Tomcat implement the container authentication via security realm.

At the end of this article, the deployed web service will authenticate user based on the authentication data stored in Tomcat’s conf/tomcat-users.xml file.

1. WebService

Create a simple JAX-WS, RPC style.

File : UserProfile.java


package com.mkyong.ws;

import javax.jws.WebMethod;
import javax.jws.WebService;
import javax.jws.soap.SOAPBinding;
import javax.jws.soap.SOAPBinding.Style;

//Service Endpoint Interface
@WebService
@SOAPBinding(style = Style.RPC)
public interface UserProfile{

	@WebMethod
	String getUserName();

}

File : UserProfileImpl.java


package com.mkyong.ws;

import javax.jws.WebService;

//Service Implementation Bean
@WebService(endpointInterface = "com.mkyong.ws.UserProfile")
public class UserProfileImpl implements UserProfile{

	@Override
	public String getUserName() {

		return "getUserName() : returned value";

	}

}

2. web.xml

Configure a security role “operator”, make url “/user” required basic http authentication. See below web.xml file, self-explanatory.

File : web.xml


<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE web-app PUBLIC "-//Sun Microsystems,
Inc.//DTD Web Application 2.3//EN"
"http://java.sun.com/dtd/web-app_2_3.dtd">

<web-app>
    //...
    <security-role>
     	<description>Normal operator user</description>
     	<role-name>operator</role-name>
   	</security-role>

	<security-constraint>
      	<web-resource-collection>
        	<web-resource-name>Operator Roles Security</web-resource-name>
        	<url-pattern>/user</url-pattern>
      	</web-resource-collection>

      	<auth-constraint>
        	<role-name>operator</role-name>
      	</auth-constraint>
      	<user-data-constraint>
          	<transport-guarantee>NONE</transport-guarantee>
      	</user-data-constraint>
   	</security-constraint>

	<login-config>
      	<auth-method>BASIC</auth-method>
   	</login-config>

    <servlet-mapping>
        <servlet-name>user</servlet-name>
        <url-pattern>/user</url-pattern>
    </servlet-mapping>
    //...
</web-app>
Note
In production, it’s recommended to set the transport guarantee to “CONFIDENTIAL“, so that any access to resources via normal http request, such as http://localhost:8080/ws/user, Tomcat will redirect the request to https request https://localhost:8443/ws/user. Of course, the redirect https can be configure in The Tomcat’s conf/server.xml.


<user-data-constraint>
    <transport-guarantee>CONFIDENTIAL</transport-guarantee>
</user-data-constraint>

See this article – Make Tomcat to support SSL or https connection

3. Tomcat Users

Add new role, username and password in $Tomcat/conf/tomcat-users.xml file. In this case, add new user “mkyong”,”123456″ and attached it to a role named “operator”.

File : $Tomcat/conf/tomcat-users.xml


<?xml version='1.0' encoding='utf-8'?>
<tomcat-users>
  <role rolename="tomcat"/>
  <role rolename="operator"/>
  <user username="tomcat" password="tomcat" roles="tomcat"/>
  <user username="mkyong" password="123456" roles="operator"/>
  <user name="admin" password="admin" roles="admin,manager" />
</tomcat-users>

4. Tomcat Realm

Configure security realm in $Tomcat/conf/server.xml file. In this case, uses default UserDatabaseRealm to read the authentication information in $Tomcat/conf/tomcat-users.xml.

File : $Tomcat/conf/server.xml


  <GlobalNamingResources>

    <Resource name="UserDatabase" auth="Container"
              type="org.apache.catalina.UserDatabase"
              description="User database that can be updated and saved"
              factory="org.apache.catalina.users.MemoryUserDatabaseFactory"
              pathname="conf/tomcat-users.xml" />
  </GlobalNamingResources>

  <Realm className="org.apache.catalina.realm.UserDatabaseRealm"
             resourceName="UserDatabase"/>

5. Deploy JAX-WS web service on Tomcat

See this detail guide on how to deploy JAX-WS web services on Tomcat.

6. Testing

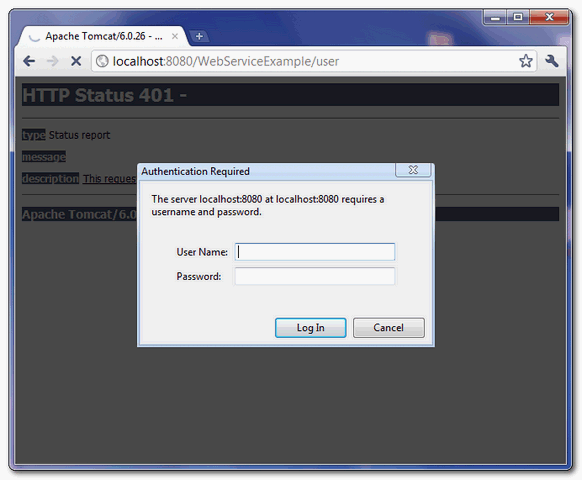

Now, any access to your deployed web service is required username and password authentication, see figure :
URL : http://localhost:8080/WebServiceExample/user

jaxws-container-authentication--example

7. WebService Client

To access the deployed web service, bind a correct username and password like this :


    UserProfile port = service.getPort(UserProfile.class);
    BindingProvider bp = (BindingProvider) port;
    bp.getRequestContext().put(BindingProvider.USERNAME_PROPERTY, "mkyong");
    bp.getRequestContext().put(BindingProvider.PASSWORD_PROPERTY, "123456");

File : WsClient.java


package com.mkyong.client;

import java.net.URL;
import javax.xml.namespace.QName;
import javax.xml.ws.BindingProvider;
import javax.xml.ws.Service;

import com.mkyong.ws.UserProfile;

public class WsClient{

        //can't parse wsdl "http://localhost:8080/WebServiceExample/user.wsdl" directly
	//save it as local file, and parse it
	private static final String WS_URL = "file:c://user.wsdl";

	public static void main(String[] args) throws Exception {

	URL url = new URL(WS_URL);
        QName qname = new QName("http://ws.mkyong.com/", "UserProfileImplService");

        Service service = Service.create(url, qname);
        UserProfile port = service.getPort(UserProfile.class);

        //add username and password for container authentication
        BindingProvider bp = (BindingProvider) port;
        bp.getRequestContext().put(BindingProvider.USERNAME_PROPERTY, "mkyong");
        bp.getRequestContext().put(BindingProvider.PASSWORD_PROPERTY, "123456");

        System.out.println(port.getUserName());

    }

}

output


getUserName() : returned value
Note
For those clients provided an invalid username or password, Tomcat will return following exception :


Exception in thread "main" com.sun.xml.internal.ws.client.ClientTransportException:
	request requires HTTP authentication: Unauthorized

Done.

Download Source Code

Reference

  1. Tomcat realm HOW TO
  2. Example: Basic Authentication with JAX-WS
  3. SSL and HTTP BASIC authentication with Glassfish and JAX-WS
