Struts 2 <s:checkboxlist> multiple check boxes example

In Struts 2 , you can use the <s:checkboxlist> tag to create multiple check boxes with a same name. The only concern is how to hold the multiple checked values in a variable? For example,

public List<String> getColors() {
	colors = new ArrayList<String>();
	colors.add("red");
	colors.add("yellow");
	colors.add("blue");
	colors.add("green");
	return colors;
}
<s:checkboxlist label="What's your favor color" list="colors"
name="yourColor" value="defaultColor" />

A multiple check boxes with “red”, “yellow”, “blue” and “green” options. If multiple options are checked, you can store it via a String object.

For example, If “red” and “yellow” options are checked, the checked values will combine with a comma, yourColor = “red,yellow”.

private String yourColor;

public void setYourColor(String yourColor) {
	this.yourColor = yourColor;
}
Read this article about how to set the default value for multiple check boxes.

Struts 2 <s:checkboxlist> example

A full Struts 2 example to create multiple check boxes with a same name via <s:checkboxlist>, stored the checked values and display it in another page.

1. Action

Action class to generate and hold the multiple check boxes values.
CheckBoxListAction.java

package com.mkyong.common.action;

import java.util.ArrayList;
import java.util.List;

import com.opensymphony.xwork2.ActionSupport;

public class CheckBoxListAction extends ActionSupport{

	private List<String> colors;

	private String yourColor;

	public String getYourColor() {
		return yourColor;
	}

	public void setYourColor(String yourColor) {
		this.yourColor = yourColor;
	}

	public CheckBoxListAction(){
		colors = new ArrayList<String>();
		colors.add("red");
		colors.add("yellow");
		colors.add("blue");
		colors.add("green");
	}

	public String[] getDefaultColor(){
		return new String [] {"red", "green"};
	}

	public List<String> getColors() {
		return colors;
	}

	public void setColors(List<String> colors) {
		this.colors = colors;
	}

	public String execute() {
		return SUCCESS;
	}

	public String display() {
		return NONE;
	}
}

2. Result page

Render the multiple check boxes via “s:checkboxlist” tag.
checkBoxlist.jsp

<%@ taglib prefix="s" uri="/struts-tags" %>
<html>
<head>
</head>

<body>
<h1>Struts 2 multiple check boxes example</h1>

<s:form action="resultAction" namespace="/">

<h2>
	<s:checkboxlist label="What's your favor color" list="colors"
	   name="yourColor" value="defaultColor" />
</h2>

<s:submit value="submit" name="submit" />

</s:form>

</body>
</html>

result.jsp

<%@ taglib prefix="s" uri="/struts-tags" %>
<html>

<body>
<h1>Struts 2 multiple check boxes example</h1>

<h2>
  Favor colors : <s:property value="yourColor"/>
</h2>

</body>
</html>

3. struts.xml

Link all together ~

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
"http://struts.apache.org/dtds/struts-2.0.dtd">

<struts>

 <constant name="struts.devMode" value="true" />

<package name="default" namespace="/" extends="struts-default">

   <action name="checkBoxListAction"
         class="com.mkyong.common.action.CheckBoxListAction" method="display">
	<result name="none">pages/checkBoxlist.jsp</result>
   </action>

   <action name="resultAction" class="com.mkyong.common.action.CheckBoxListAction">
	<result name="success">pages/result.jsp</result>
   </action>
  </package>

</struts>

5. Demo

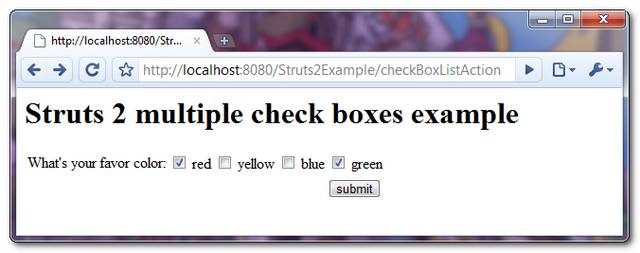

http://localhost:8080/Struts2Example/checkBoxListAction.action

Struts 2 checkboxlist example

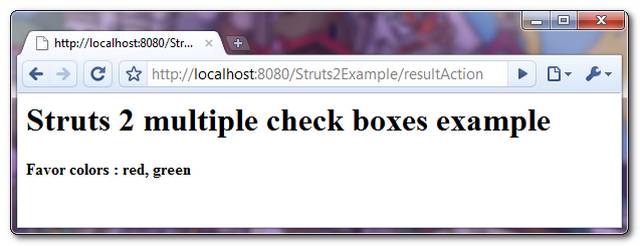

http://localhost:8080/Struts2Example/resultAction.action

Struts 2 checkboxlist example

Reference

  1. Struts 2 checkboxlist documentation
