Struts 2 <s:checkbox> checkbox example

In Struts 2 , you can use the <s:checkbox> tag to create a HTML check box. The fieldValue=”true” is the actual value that will be submitted by the check box.


<s:checkbox name="checkMe" fieldValue="true" label="Check Me for testing"/>
In common, you do not need to declared the fieldValue=”true”, because true is the default value.

It will generate the following HTML.


<input type="checkbox" name="checkMe" value="true" id="xx_checkMe"/>
<input type="hidden" id="__checkbox_xx_checkMe" name="__checkbox_checkMe" value="true"/>
<label for="resultAction_checkMe" class="checkboxLabel">Check Me for testing</label>

Preselect a checkbox

If you want to preselect a check box, just add a value attribute and set it to true.


<s:checkbox name="checkMe" fieldValue="true" value="true" label="Check Me for testing"/>

It will generate the following HTML.


<input type="checkbox" name="checkMe" value="true" checked="checked" id="xx_checkMe"/>
<input type="hidden" id="__checkbox_xx_checkMe" name="__checkbox_checkMe" value="true" />
<label for="resultAction_checkMe" class="checkboxLabel">Check Me for testing</label>

Struts 2 <s:checkbox> example

A full example to create a check box via Struts 2 <s:checkbox>, and assign submitted check box value to the Action class and display it.

1. Action

Action class with a checkMe boolean property to hold the check box value.
CheckBoxAction.java


package com.mkyong.common.action;

import com.opensymphony.xwork2.ActionSupport;

public class CheckBoxAction extends ActionSupport{

	private boolean checkMe;

	public boolean isCheckMe() {
		return checkMe;
	}

	public void setCheckMe(boolean checkMe) {
		this.checkMe = checkMe;
	}

	public String execute() {

		return SUCCESS;

	}

	public String display() {

		return NONE;

	}

}

2. Result page

Result page to use Struts 2 “s:checkbox” tag to create a check box.

checkBox.jsp


<%@ taglib prefix="s" uri="/struts-tags" %>
<html>
<head>
</head>

<body>
<h1>Struts 2 check box example</h1>

<s:form action="resultAction" namespace="/">

<h2>
	<s:checkbox name="checkMe" fieldValue="true" label="Check Me for testing"/>
</h2>

<s:submit value="submit" name="submit" />

</s:form>

</body>
</html>

result.jsp


<%@ taglib prefix="s" uri="/struts-tags" %>
<html>

<body>
<h1>Struts 2 check box example</h1>

<h2>
  CheckBox (CheckMe) value : <s:property value="checkMe"/>
</h2>

</body>
</html>

3. struts.xml

Link all together ~


<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
"http://struts.apache.org/dtds/struts-2.0.dtd">

<struts>

 <constant name="struts.devMode" value="true" />

<package name="default" namespace="/" extends="struts-default">

   <action name="checkBoxAction"
         class="com.mkyong.common.action.CheckBoxAction" method="display">
	<result name="none">pages/checkBox.jsp</result>
   </action>

   <action name="resultAction" class="com.mkyong.common.action.CheckBoxAction">
	<result name="success">pages/result.jsp</result>
   </action>
  </package>

</struts>

5. Demo

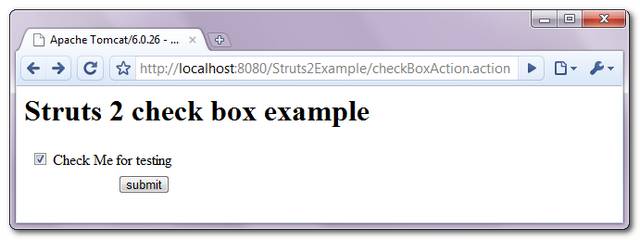

http://localhost:8080/Struts2Example/checkBoxAction.action

Struts2 check box

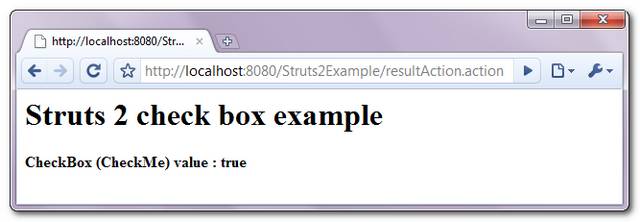

http://localhost:8080/Struts2Example/resultAction.action

Struts2 check box

Reference

  1. Struts 2 checkbox documentation
