Download It – Struts2-AutoCompleter-Example.zip

In Struts 2, the <sx:autocompleter> tag is a combo box that will automatic prompt drop down suggestion lists while user typing on the text box.

This feature is implemented by dojo library, So, make sure you include “struts2-dojo-plugin.jar” as dependency library, put “struts-dojo-tags” tag on top of the page and output its header information via <sx:head />.

For example,

<%@ taglib prefix="sx" uri="/struts-dojo-tags" %>
<html>
<head>
<sx:head />
</head>
<body>
<sx:autocompleter label="What's your lucky number?"
name="yourLuckyNumber" autoComplete="false"
list="{'1','12','13','14'}" />

Resulting the following HTML

<html>
<head>
<script language="JavaScript" type="text/javascript">
    // Dojo configuration
    djConfig = {
        isDebug: false,
        bindEncoding: "UTF-8"
          ,baseRelativePath: "/Struts2Example/struts/dojo/"
          ,baseScriptUri: "/Struts2Example/struts/dojo/"
         ,parseWidgets : false

    };
</script>
<script language="JavaScript" type="text/javascript"
        src="/Struts2Example/struts/dojo/struts_dojo.js"></script>

<script language="JavaScript" type="text/javascript"
        src="/Struts2Example/struts/ajax/dojoRequire.js"></script>

<link rel="stylesheet" href="/Struts2Example/struts/xhtml/styles.css"
type="text/css"/>

<script language="JavaScript" src="/Struts2Example/struts/utils.js"
type="text/javascript"></script>

<script language="JavaScript" src="/Struts2Example/struts/xhtml/validation.js"
type="text/javascript"></script>

<script language="JavaScript" src="/Struts2Example/struts/css_xhtml/validation.js"
type="text/javascript"></script>
</head>
...
<tr>
<td class="tdLabel">
<label for="resultAction_yourLuckyNumber" class="label">
What's your lucky number?:</label></td>
<td>
<select dojoType="struts:ComboBox" id="resultAction_yourLuckyNumber"
autoComplete="false" name="yourLuckyNumber"
keyName="yourLuckyNumberKey" visibleDownArrow="true" >
    <option value="1">1</option>
    <option value="12">12</option>
    <option value="13">13</option>
    <option value="14">14</option>
</select>
</td>
</tr>
<script language="JavaScript" type="text/javascript">
djConfig.searchIds.push("resultAction_yourLuckyNumber");</script>

Struts 2 <s:autocompleter> example

A complete example of the <s:autocompleter> tag, generate the drop down suggestion lists while user typing on the corresponding text box.

1. pom.xml

Download the Struts 2 dojo dependency libraries.

pom.xml

//...
    <!-- Struts 2 -->
    <dependency>
      <groupId>org.apache.struts</groupId>
	  <artifactId>struts2-core</artifactId>
	  <version>2.1.8</version>
    </dependency>

    <!-- Struts 2 Dojo Ajax Tags -->
    <dependency>
      <groupId>org.apache.struts</groupId>
	  <artifactId>struts2-dojo-plugin</artifactId>
	  <version>2.1.8</version>
    </dependency>
//...

2. Action class

Action class to generate a list of the web frameworks options to the “autocompleter” component.

AutoCompleterAction.java

package com.mkyong.common.action;

import java.util.ArrayList;
import java.util.List;

import com.opensymphony.xwork2.ActionSupport;

public class AutoCompleterAction extends ActionSupport{

	private List<String> webframeworks = new ArrayList<String>();

	private String yourFavWebFramework;
	private String yourLuckyNumber;

	public AutoCompleterAction(){
		webframeworks.add("Spring MVC");
		webframeworks.add("Struts 1.x");
		webframeworks.add("Struts 2.x");
		webframeworks.add("JavaServer Faces (JSF)");
		webframeworks.add("Google Web Toolkit (GWT)");
		webframeworks.add("Apache Wicket");
		webframeworks.add("Apache Click");
		webframeworks.add("Apache Cocoon");
		webframeworks.add("JBoss Seam");
		webframeworks.add("Stripes");
		webframeworks.add("Apache Tapestry");
		webframeworks.add("Others");
	}

	public String getYourLuckyNumber() {
		return yourLuckyNumber;
	}

	public void setYourLuckyNumber(String yourLuckyNumber) {
		this.yourLuckyNumber = yourLuckyNumber;
	}

	public String getYourFavWebFramework() {
		return yourFavWebFramework;
	}

	public void setYourFavWebFramework(String yourFavWebFramework) {
		this.yourFavWebFramework = yourFavWebFramework;
	}

	public List<String> getWebframeworks() {
		return webframeworks;
	}

	public void setWebframeworks(List<String> webframeworks) {
		this.webframeworks = webframeworks;
	}

	public String display() {
		return NONE;
	}

}

3. Result Page

Render the “autocompleter” component via “<s:autocompleter>” tag, and generate the auto drop down suggestion lists via Java list and OGNL.

autocompleter.jsp

<%@ taglib prefix="s" uri="/struts-tags" %>
<%@ taglib prefix="sx" uri="/struts-dojo-tags" %>

<html>
<head>
<sx:head />
</head>

<body>
<h1>Struts 2 autocompleter example</h1>

<s:form action="resultAction" namespace="/" method="POST" >

<sx:autocompleter label="What's your lucky number?"
name="yourLuckyNumber" autoComplete="false"
list="{'1','12','13','14','21','22','23','24',
'31','32','33','34','41','42','43','44'}" />

<sx:autocompleter label="What's your favorite web framework?"
list="webframeworks" name="yourFavWebFramework" />

<s:submit value="submit" name="submit" />

</s:form>

</body>
</html>

result.jsp

<%@ taglib prefix="s" uri="/struts-tags" %>
<html>

<body>
<h1>Struts 2 autocompleter example</h1>

<h4>
   Lucky Number : <s:property value="yourLuckyNumber"/>
</h4>

<h4>
   Web Appication Frameworks : <s:property value="yourFavWebFramework"/>
</h4>

</body>
</html>

3. struts.xml

Link it all ~

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
"http://struts.apache.org/dtds/struts-2.0.dtd">

<struts>

 <constant name="struts.devMode" value="true" />

<package name="default" namespace="/" extends="struts-default">

  <action name="autoCompleterAction"
	class="com.mkyong.common.action.AutoCompleterAction"
        method="display">
	<result name="none">pages/autocompleter.jsp</result>
  </action>

  <action name="resultAction"
        class="com.mkyong.common.action.AutoCompleterAction" >
	<result name="success">pages/result.jsp</result>
  </action>
</package>

</struts>

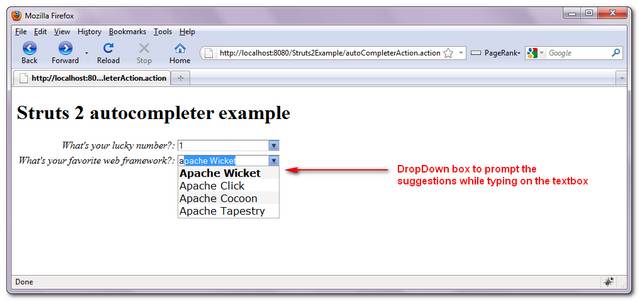

4. Demo

http://localhost:8080/Struts2Example/autoCompleterAction.action

Struts 2 AutoCompleter example
Struts 2 AutoCompleter example
Here’s another example to show the use of JSON data to provide a list of the select options to the autocompleter component – Struts 2 autocompleter + JSON example.

Reference

  1. Struts 2 autocompleter documentation
  2. Struts 2 ajax and javascript recipes
  3. Struts 2 combo box example
