Download this Struts text area example – Struts-TextArea-Example.zip

In this Struts example, you will learn how to create a HTML text area input field with Struts <html:textarea> tag.

1. Folder Structure

This is the final project structure created by Maven. Please create the corresponding folders.

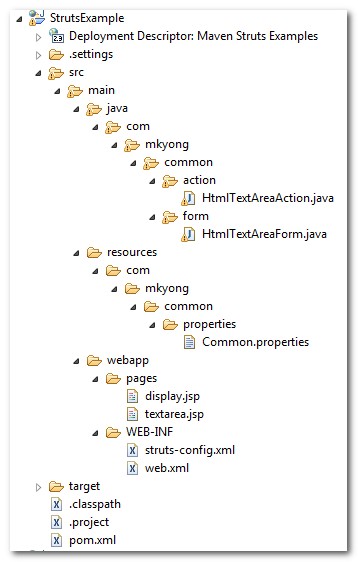

Struts-textarea-folder

2. Action class

Create an Action class, do nothing but forward the request.

HtmlTextAreaAction.java

package com.mkyong.common.action;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.apache.struts.action.Action;
import org.apache.struts.action.ActionForm;
import org.apache.struts.action.ActionForward;
import org.apache.struts.action.ActionMapping;

import com.mkyong.common.form.HtmlTextAreaForm;

public class HtmlTextAreaAction extends Action{

	public ActionForward execute(ActionMapping mapping,ActionForm form,
			HttpServletRequest request,HttpServletResponse response)
        throws Exception {

	   HtmlTextAreaForm htmlTextAreaForm = (HtmlTextAreaForm)form;

	   return mapping.findForward("success");
	}

}

3. Properties file

Create a properties file, and declare the error and label messages.

Common.properties

#error message
error.common.html.textarea.required = "Address" field is required.

#label message
label.common.html.textarea.address = Address
label.common.html.textarea.button.submit = Submit
label.common.html.textarea.button.reset = Reset

4. ActionForm

Create a ActionForm, contains a address variable to hold the text area input value.

HtmlTextAreaForm.java

package com.mkyong.common.form;

import javax.servlet.http.HttpServletRequest;

import org.apache.struts.action.ActionErrors;
import org.apache.struts.action.ActionForm;
import org.apache.struts.action.ActionMapping;
import org.apache.struts.action.ActionMessage;

public class HtmlTextAreaForm extends ActionForm{

	String address;

	public String getAddress() {
		return address;
	}

	public void setAddress(String address) {
		this.address = address;
	}

	@Override
	public ActionErrors validate(ActionMapping mapping,
		HttpServletRequest request) {

	    ActionErrors errors = new ActionErrors();

	    if( getAddress() == null || ("".equals(getAddress())))
	    {
	       errors.add("common.textarea.err",
	    	new ActionMessage("error.common.html.textarea.required"));
	    }

	    return errors;
	}

	@Override
	public void reset(ActionMapping mapping, HttpServletRequest request) {
		// reset properties
		address = "";
	}

}

5. JSP Page

Use the Struts HTML tag <html:textarea> to create a HTML text area input field.

textarea.jsp

<%@taglib uri="http://struts.apache.org/tags-html" prefix="html"%>
<%@taglib uri="http://struts.apache.org/tags-bean" prefix="bean"%>

<html>
<head>
</head>
<body>
<h1>Struts html:textarea example</h1>

<html:form action="/TextArea">

<html:messages id="err_name" property="common.textarea.err">
<div style="color:red">
	<bean:write name="err_name" />
</div>
</html:messages>

<div style="padding:16px">
<div style="float:left;padding-right:8px;">
	<bean:message key="label.common.html.textarea.address" /> :
</div>
<html:textarea property="address" cols="50" rows="10" />
</div>

<div style="padding:16px">
	<div style="float:left;padding-right:8px;">
	  <html:submit>
	    <bean:message key="label.common.html.textarea.button.submit" />
	  </html:submit>
	</div>
	<html:reset>
	   <bean:message key="label.common.html.textarea.button.reset" />
	</html:reset>
</div>

</html:form>

</body>
</html>

Get the text area input value from htmlTextAreaForm form and display it

display.jsp

<%@taglib uri="http://struts.apache.org/tags-bean" prefix="bean"%>

<html>
<head>
</head>
<body>
<h1>
	Your address is :
	<bean:write name="htmlTextAreaForm" property="address" />
</h1>
</body>
</html>

6. struts-config.xml

Create a Struts configuration file and link all together.

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE struts-config PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 1.3//EN"
"http://jakarta.apache.org/struts/dtds/struts-config_1_3.dtd">

<struts-config>

	<form-beans>
		<form-bean
			name="htmlTextAreaForm"
			type="com.mkyong.common.form.HtmlTextAreaForm"/>

	</form-beans>

	<action-mappings>

	        <action
			path="/TextAreaPage"
			type="org.apache.struts.actions.ForwardAction"
			parameter="/pages/textarea.jsp"/>

		<action
			path="/TextArea"
			type="com.mkyong.common.action.HtmlTextAreaAction"
			name="htmlTextAreaForm"
			validate="true"
			input="/pages/textarea.jsp"
			>

			<forward name="success" path="/pages/display.jsp"/>
		</action>
	</action-mappings>

	<message-resources
		parameter="com.mkyong.common.properties.Common" />

</struts-config>

7. web.xml

Final step, create a web.xml and integrate the Struts framework.

<!DOCTYPE web-app PUBLIC
 "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
 "http://java.sun.com/dtd/web-app_2_3.dtd" >

<web-app>
  <display-name>Maven Struts Examples</display-name>

  <servlet>
    <servlet-name>action</servlet-name>
    <servlet-class>
        org.apache.struts.action.ActionServlet
    </servlet-class>
    <init-param>
        <param-name>config</param-name>
        <param-value>
         /WEB-INF/struts-config.xml
        </param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
  </servlet>

  <servlet-mapping>
       <servlet-name>action</servlet-name>
       <url-pattern>*.do</url-pattern>
  </servlet-mapping>

</web-app>

Access it

http://localhost:8080/StrutsExample/TextAreaPage.do

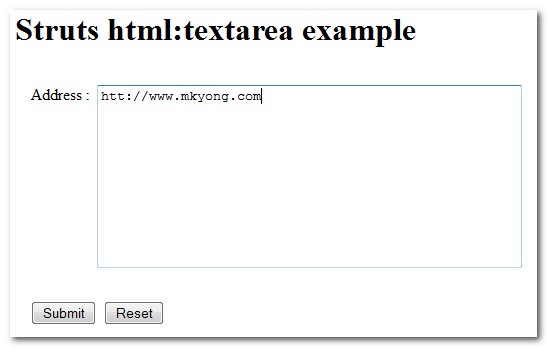

Struts-textarea-example1

Fill in the address and pressed the submit button, it will forward to

http://localhost:8080/StrutsExample/TextArea.do

and display the your key in address.

Struts-textarea-example2
