Struts <html:checkbox> checkbox example

Download this Struts check box example – Struts-CheckBox-Example.zip

In this Struts example, you will learn how to create a HTML check box input field with Struts <html:checkbox> tag

1. Folder Structure

This is the final project structure created by Maven. Please create the corresponding folders.

2. Action class

Create an Action class, do nothing but forward the request.

HtmlCheckBoxAction.java

package com.mkyong.common.action;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.apache.struts.action.Action;
import org.apache.struts.action.ActionForm;
import org.apache.struts.action.ActionForward;
import org.apache.struts.action.ActionMapping;

public class HtmlCheckBoxAction extends Action{

	public ActionForward execute(ActionMapping mapping,ActionForm form,
			HttpServletRequest request,HttpServletResponse response)
        throws Exception {

		return mapping.findForward("success");
	}

}

3. Properties file

Create a properties file, and declare the error and label messages.

Common.properties

#error message
error.common.html.checkbox.required = Please tick the checkbox.

#label message
label.common.html.checkbox.name = CheckBox
label.common.html.checkbox.button.submit = Submit
label.common.html.checkbox.button.reset = Reset

4. ActionForm

Create a ActionForm, accept a checkbox value.

HtmlCheckBoxForm.java

package com.mkyong.common.form;

import javax.servlet.http.HttpServletRequest;

import org.apache.struts.action.ActionErrors;
import org.apache.struts.action.ActionForm;
import org.apache.struts.action.ActionMapping;
import org.apache.struts.action.ActionMessage;

public class HtmlCheckBoxForm extends ActionForm{

	String checkboxValue;

	public String getCheckboxValue() {
		return checkboxValue;
	}

	public void setCheckboxValue(String checkboxValue) {
		this.checkboxValue = checkboxValue;
	}

	@Override
	public ActionErrors validate(ActionMapping mapping,
			HttpServletRequest request) {

	    ActionErrors errors = new ActionErrors();

	    if( getCheckboxValue() == null || ("".equals(getCheckboxValue()))) {
	       errors.add("common.checkbox.err",
	    	  new ActionMessage("error.common.html.checkbox.required"));
	    }

	    return errors;
	}

	@Override
	public void reset(ActionMapping mapping, HttpServletRequest request) {
		// reset properties
		checkboxValue = "";
	}

}

5. JSP Page

Use the Struts’s HTML tag <html:checkbox> to create a HTML checkbox input field.

checkbox.jsp

<%@taglib uri="http://struts.apache.org/tags-html" prefix="html"%>
<%@taglib uri="http://struts.apache.org/tags-bean" prefix="bean"%>

<html>
<head>
</head>
<body>
<h1>Struts html:checkbox example</h1>

<html:form action="/CheckBox">

<html:messages id="err_name" property="common.checkbox.err">
<div style="color:red">
	<bean:write name="err_name" />
</div>
</html:messages>

<div style="padding:16px">
<bean:message key="label.common.html.checkbox.name" /> :
	<html:checkbox property="checkboxValue" />
</div>

<div style="padding:16px">
	<div style="float:left;padding-right:8px;">
		<html:submit>
                  <bean:message key="label.common.html.checkbox.button.submit" />
                </html:submit>
	</div>
	<html:reset>
           <bean:message key="label.common.html.checkbox.button.reset" />
        </html:reset>
</div>

</html:form>

</body>
</html>

Display the check box value.

display.jsp

<%@taglib uri="http://struts.apache.org/tags-bean" prefix="bean"%>

<html>
<head>
</head>
<body>
<h1>
CheckBox value : <bean:write name="htmlCheckBoxForm" property="checkboxValue" />
</h1>
</body>
</html>

6. struts-config.xml

Create a Struts configuration file and link all together.

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE struts-config PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 1.3//EN"
"http://jakarta.apache.org/struts/dtds/struts-config_1_3.dtd">

<struts-config>

	<form-beans>
		<form-bean
			name="htmlCheckBoxForm"
			type="com.mkyong.common.form.HtmlCheckBoxForm"/>

	</form-beans>

	<action-mappings>

	        <action
			path="/CheckBoxPage"
			type="org.apache.struts.actions.ForwardAction"
			parameter="/pages/checkbox.jsp"/>

		<action
			path="/CheckBox"
			type="com.mkyong.common.action.HtmlCheckBoxAction"
			name="htmlCheckBoxForm"
			validate="true"
			input="/pages/checkbox.jsp"
			>

			<forward name="success" path="/pages/display.jsp"/>
		</action>

	</action-mappings>

	<message-resources
		parameter="com.mkyong.common.properties.Common" />

</struts-config>

7. web.xml

Final step, create a web.xml for the Strut framework integration.

<!DOCTYPE web-app PUBLIC
 "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
 "http://java.sun.com/dtd/web-app_2_3.dtd" >

<web-app>
  <display-name>Maven Struts Examples</display-name>

  <servlet>
    <servlet-name>action</servlet-name>
    <servlet-class>
        org.apache.struts.action.ActionServlet
    </servlet-class>
    <init-param>
        <param-name>config</param-name>
        <param-value>
         /WEB-INF/struts-config.xml
        </param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
  </servlet>

  <servlet-mapping>
       <servlet-name>action</servlet-name>
       <url-pattern>*.do</url-pattern>
  </servlet-mapping>

</web-app>

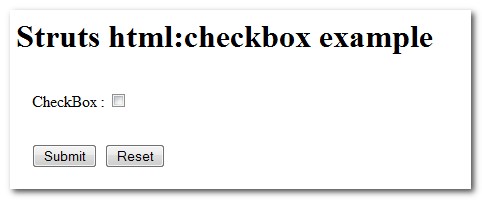

Access it

http://localhost:8080/StrutsExample/CheckBoxPage.do

Tick the check box and pressed on the submit button, it will forward to

http://localhost:8080/StrutsExample/CheckBox.do

If a check box is selected, the value is “on”, else it’s an empty value.
