Spring Security HTTP basic authentication example

When HTTP basic authentication is configured, web browser will display a login dialog for user authentication. This tutorial show you how to configure HTTP basic authentication in Spring Security.


  <http>
	<intercept-url pattern="/welcome*" access="ROLE_USER" />
	<http-basic />
  </http>

Last Spring Security form-based login example will be reused, but switch authentication to support HTTP basic.

1. Spring Security

To enable HTTP basic, just change “form-login” to “http-basic” tag.


<beans:beans xmlns="http://www.springframework.org/schema/security"
	xmlns:beans="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
	http://www.springframework.org/schema/security
	http://www.springframework.org/schema/security/spring-security-3.0.3.xsd">

	<!-- HTTP basic authentication in Spring Security -->
	<http>
		<intercept-url pattern="/welcome*" access="ROLE_USER" />
		<http-basic />
	</http>

	<authentication-manager>
	   <authentication-provider>
	       <user-service>
		   <user name="mkyong" password="123456" authorities="ROLE_USER" />
	       </user-service>
	   </authentication-provider>
	</authentication-manager>

</beans:beans>

Done, that’s all.

2. Demo

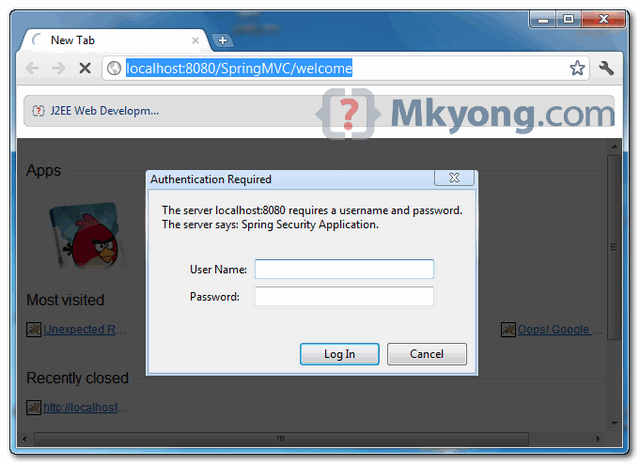

When access the secured URL, browser will display a login dialog box automatically.

URL : http://localhost:8080/SpringMVC/welcome

http basic example

Download Source Code

References

  1. Spring Security hello world example
  2. Spring Security form-based login example
