In this tutorial, we will show you how to perform database authentication (using both XML and Annotations) in Spring Security.

Technologies used :

  1. Spring 3.2.8.RELEASE
  2. Spring Security 3.2.3.RELEASE
  3. Spring JDBC 3.2.3.RELEASE
  4. Eclipse 4.2
  5. JDK 1.6
  6. Maven 3
  7. Tomcat 6 or 7 (Servlet 3.x)
  8. MySQL Server 5.6

Previous login-form in-memory authentication will be reused, enhance to support the following features :

  1. Database authentication, using Spring-JDBC and MySQL.
  2. Spring Security, JSP TagLib, sec:authorize access="hasRole('ROLE_USER')
  3. Customize a 403 access denied page.

1. Project Demo

2. Project Directory

Review the final project structure (XML-based) :

spring-security-database-xml-directory

Review the final project structure (Annotation-based):

spring-security-database-annotation-directory

3. Project Dependencies

Get dependency for Spring, Spring Security, JDBC, Taglib and MySQL

pom.xml
	<properties>
		<jdk.version>1.6</jdk.version>
		<spring.version>3.2.8.RELEASE</spring.version>
		<spring.security.version>3.2.3.RELEASE</spring.security.version>
		<jstl.version>1.2</jstl.version>
		<mysql.connector.version>5.1.30</mysql.connector.version>
	</properties>

	<dependencies>

		<!-- Spring 3 dependencies -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-core</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-web</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jdbc</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<!-- Spring Security -->
		<dependency>
			<groupId>org.springframework.security</groupId>
			<artifactId>spring-security-web</artifactId>
			<version>${spring.security.version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework.security</groupId>
			<artifactId>spring-security-config</artifactId>
			<version>${spring.security.version}</version>
		</dependency>

		<!-- Spring Security JSP Taglib -->
		<dependency>
			<groupId>org.springframework.security</groupId>
			<artifactId>spring-security-taglibs</artifactId>
			<version>${spring.security.version}</version>
		</dependency>

		<!-- jstl for jsp page -->
		<dependency>
			<groupId>jstl</groupId>
			<artifactId>jstl</artifactId>
			<version>${jstl.version}</version>
		</dependency>

                <!-- connect to mysql -->
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>${mysql.connector.version}</version>
		</dependency>

	</dependencies>

</project>

4. Database

To perform database authentication, you have to create tables to store the users and roles detail. Please refer to this Spring Security user-schema reference. Here are the MySQL scripts to create users and user_roles tables.

4.1 Create a “users” table.

users.sql
CREATE  TABLE users (
  username VARCHAR(45) NOT NULL ,
  password VARCHAR(45) NOT NULL ,
  enabled TINYINT NOT NULL DEFAULT 1 ,
  PRIMARY KEY (username));

4.2 Create a “user_roles” table.

user_roles.sql
CREATE TABLE user_roles (
  user_role_id INT(11) NOT NULL AUTO_INCREMENT,
  username VARCHAR(45) NOT NULL,
  ROLE VARCHAR(45) NOT NULL,
  PRIMARY KEY (user_role_id),
  UNIQUE KEY uni_username_role (ROLE,username),
  KEY fk_username_idx (username),
  CONSTRAINT fk_username FOREIGN KEY (username) REFERENCES users (username));

4.3 Inserts some records for testing.

INSERT INTO users(username,password,enabled)
VALUES ('mkyong','123456', TRUE);
INSERT INTO users(username,password,enabled)
VALUES ('alex','123456', TRUE);

INSERT INTO user_roles (username, ROLE)
VALUES ('mkyong', 'ROLE_USER');
INSERT INTO user_roles (username, ROLE)
VALUES ('mkyong', 'ROLE_ADMIN');
INSERT INTO user_roles (username, ROLE)
VALUES ('alex', 'ROLE_USER');
Note

  1. Username “mkyong”, with role_user and role_admin.
  2. Username “alexa”, with role_user.

5. Spring Security Configuration

Spring Security in both XML and annotations.

5.1 Create a DataSource to connect MySQL.

spring-database.xml
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans-3.0.xsd">

	<bean id="dataSource"
		class="org.springframework.jdbc.datasource.DriverManagerDataSource">

		<property name="driverClassName" value="com.mysql.jdbc.Driver" />
		<property name="url" value="jdbc:mysql://localhost:3306/test" />
		<property name="username" value="root" />
		<property name="password" value="password" />
	</bean>

</beans>

The equivalent of the Spring annotations :

SecurityConfig.java
package com.mkyong.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Import;
import org.springframework.jdbc.datasource.DriverManagerDataSource;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.view.InternalResourceViewResolver;
import org.springframework.web.servlet.view.JstlView;

@EnableWebMvc
@Configuration
@ComponentScan({ "com.mkyong.web.*" })
@Import({ SecurityConfig.class })
public class AppConfig {

	@Bean(name = "dataSource")
	public DriverManagerDataSource dataSource() {
	    DriverManagerDataSource driverManagerDataSource = new DriverManagerDataSource();
	    driverManagerDataSource.setDriverClassName("com.mysql.jdbc.Driver");
	    driverManagerDataSource.setUrl("jdbc:mysql://localhost:3306/test");
	    driverManagerDataSource.setUsername("root");
	    driverManagerDataSource.setPassword("password");
	    return driverManagerDataSource;
	}

	@Bean
	public InternalResourceViewResolver viewResolver() {
	    InternalResourceViewResolver viewResolver = new InternalResourceViewResolver();
	    viewResolver.setViewClass(JstlView.class);
	    viewResolver.setPrefix("/WEB-INF/pages/");
	    viewResolver.setSuffix(".jsp");
	    return viewResolver;
	}

}

5.2 Use jdbc-user-service to define a query to perform database authentication.

spring-security.xml
<beans:beans xmlns="http://www.springframework.org/schema/security"
	xmlns:beans="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
	http://www.springframework.org/schema/security
	http://www.springframework.org/schema/security/spring-security-3.2.xsd">

    <!-- enable use-expressions -->
	<http auto-config="true" use-expressions="true">

		<intercept-url pattern="/admin**" access="hasRole('ROLE_ADMIN')" />

		<!-- access denied page -->
		<access-denied-handler error-page="/403" />

		<form-login
		    login-page="/login"
		    default-target-url="/welcome"
			authentication-failure-url="/login?error"
			username-parameter="username"
			password-parameter="password" />
		<logout logout-success-url="/login?logout"  />
		<!-- enable csrf protection -->
		<csrf/>
	</http>

	<!-- Select users and user_roles from database -->
	<authentication-manager>
	  <authentication-provider>
		<jdbc-user-service data-source-ref="dataSource"
		  users-by-username-query=
		    "select username,password, enabled from users where username=?"
		  authorities-by-username-query=
		    "select username, role from user_roles where username =?  " />
	  </authentication-provider>
	</authentication-manager>

</beans:beans>

The equivalent of the Spring Security annotations :

SecurityConfig.java
package com.mkyong.config;

import javax.sql.DataSource;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;

@Configuration
@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter {

	@Autowired
	DataSource dataSource;

	@Autowired
	public void configAuthentication(AuthenticationManagerBuilder auth) throws Exception {

	  auth.jdbcAuthentication().dataSource(dataSource)
		.usersByUsernameQuery(
			"select username,password, enabled from users where username=?")
		.authoritiesByUsernameQuery(
			"select username, role from user_roles where username=?");
	}

	@Override
	protected void configure(HttpSecurity http) throws Exception {

	  http.authorizeRequests()
		.antMatchers("/admin/**").access("hasRole('ROLE_ADMIN')")
		.and()
		  .formLogin().loginPage("/login").failureUrl("/login?error")
		  .usernameParameter("username").passwordParameter("password")
		.and()
		  .logout().logoutSuccessUrl("/login?logout")
		.and()
		  .exceptionHandling().accessDeniedPage("/403")
		.and()
		  .csrf();
	}
}

6. JSP Pages

JSP pages for custom login page.

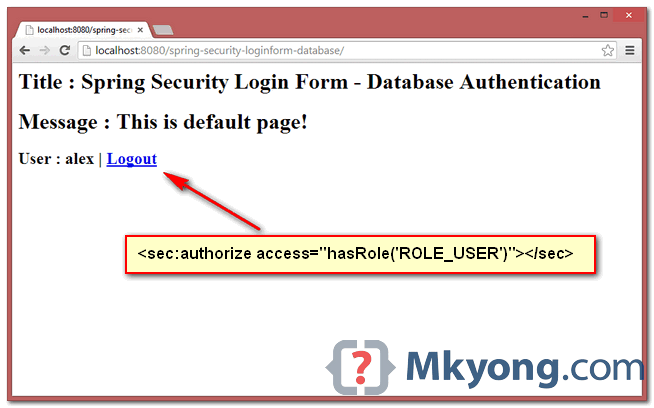

6.1 Default page, show the use of Spring Security JSP taglib sec:authorize to display content to users who have “ROLE_USER” authority.

hello.jsp
<%@taglib prefix="sec"
	uri="http://www.springframework.org/security/tags"%>
<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<html>
<body>
	<h1>Title : ${title}</h1>
	<h1>Message : ${message}</h1>

	<sec:authorize access="hasRole('ROLE_USER')">
		<!-- For login user -->
		<c:url value="/j_spring_security_logout" var="logoutUrl" />
		<form action="${logoutUrl}" method="post" id="logoutForm">
			<input type="hidden" name="${_csrf.parameterName}"
				value="${_csrf.token}" />
		</form>
		<script>
			function formSubmit() {
				document.getElementById("logoutForm").submit();
			}
		</script>

		<c:if test="${pageContext.request.userPrincipal.name != null}">
			<h2>
				User : ${pageContext.request.userPrincipal.name} | <a
					href="javascript:formSubmit()"> Logout</a>
			</h2>
		</c:if>


	</sec:authorize>
</body>
</html>

6.2 Page to display the custom login form.

login.jsp
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<%@page session="true"%>
<html>
<head>
<title>Login Page</title>
<style>
.error {
	padding: 15px;
	margin-bottom: 20px;
	border: 1px solid transparent;
	border-radius: 4px;
	color: #a94442;
	background-color: #f2dede;
	border-color: #ebccd1;
}

.msg {
	padding: 15px;
	margin-bottom: 20px;
	border: 1px solid transparent;
	border-radius: 4px;
	color: #31708f;
	background-color: #d9edf7;
	border-color: #bce8f1;
}

#login-box {
	width: 300px;
	padding: 20px;
	margin: 100px auto;
	background: #fff;
	-webkit-border-radius: 2px;
	-moz-border-radius: 2px;
	border: 1px solid #000;
}
</style>
</head>
<body onload='document.loginForm.username.focus();'>

	<h1>Spring Security Login Form (Database Authentication)</h1>

	<div id="login-box">

		<h3>Login with Username and Password</h3>

		<c:if test="${not empty error}">
			<div class="error">${error}</div>
		</c:if>
		<c:if test="${not empty msg}">
			<div class="msg">${msg}</div>
		</c:if>

		<form name='loginForm'
		  action="<c:url value='/j_spring_security_check' />" method='POST'>

		<table>
			<tr>
				<td>User:</td>
				<td><input type='text' name='username'></td>
			</tr>
			<tr>
				<td>Password:</td>
				<td><input type='password' name='password' /></td>
			</tr>
			<tr>
				<td colspan='2'><input name="submit" type="submit"
				  value="submit" /></td>
			</tr>
		  </table>

		  <input type="hidden" name="${_csrf.parameterName}"
			value="${_csrf.token}" />

		</form>
	</div>

</body>
</html>

6.3 This page is password protected, only authenticated user “ROLE_ADMIN” is allowed to access.

admin.jsp
<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<%@page session="true"%>
<html>
<body>
	<h1>Title : ${title}</h1>
	<h1>Message : ${message}</h1>

	<c:url value="/j_spring_security_logout" var="logoutUrl" />
	<form action="${logoutUrl}" method="post" id="logoutForm">
		<input type="hidden" name="${_csrf.parameterName}"
			value="${_csrf.token}" />
	</form>
	<script>
		function formSubmit() {
			document.getElementById("logoutForm").submit();
		}
	</script>

	<c:if test="${pageContext.request.userPrincipal.name != null}">
		<h2>
			Welcome : ${pageContext.request.userPrincipal.name} | <a
				href="javascript:formSubmit()"> Logout</a>
		</h2>
	</c:if>

</body>
</html>

6.4 Custom 403 access denied page.

403.jsp
<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<html>
<body>
	<h1>HTTP Status 403 - Access is denied</h1>

	<c:choose>
		<c:when test="${empty username}">
		  <h2>You do not have permission to access this page!</h2>
		</c:when>
		<c:otherwise>
		  <h2>Username : ${username} <br/>
                    You do not have permission to access this page!</h2>
		</c:otherwise>
	</c:choose>

</body>
</html>

7. Spring MVC Controller

A simple controller.

MainController.java
package com.mkyong.web.controller;

import org.springframework.security.authentication.AnonymousAuthenticationToken;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.servlet.ModelAndView;

@Controller
public class MainController {

	@RequestMapping(value = { "/", "/welcome**" }, method = RequestMethod.GET)
	public ModelAndView defaultPage() {

	  ModelAndView model = new ModelAndView();
	  model.addObject("title", "Spring Security Login Form - Database Authentication");
	  model.addObject("message", "This is default page!");
	  model.setViewName("hello");
	  return model;

	}

	@RequestMapping(value = "/admin**", method = RequestMethod.GET)
	public ModelAndView adminPage() {

	  ModelAndView model = new ModelAndView();
	  model.addObject("title", "Spring Security Login Form - Database Authentication");
	  model.addObject("message", "This page is for ROLE_ADMIN only!");
	  model.setViewName("admin");
	  return model;

	}

	@RequestMapping(value = "/login", method = RequestMethod.GET)
	public ModelAndView login(@RequestParam(value = "error", required = false) String error,
		@RequestParam(value = "logout", required = false) String logout) {

	  ModelAndView model = new ModelAndView();
	  if (error != null) {
		model.addObject("error", "Invalid username and password!");
	  }

	  if (logout != null) {
		model.addObject("msg", "You've been logged out successfully.");
	  }
	  model.setViewName("login");

	  return model;

	}

	//for 403 access denied page
	@RequestMapping(value = "/403", method = RequestMethod.GET)
	public ModelAndView accesssDenied() {

	  ModelAndView model = new ModelAndView();

	  //check if user is login
	  Authentication auth = SecurityContextHolder.getContext().getAuthentication();
	  if (!(auth instanceof AnonymousAuthenticationToken)) {
		UserDetails userDetail = (UserDetails) auth.getPrincipal();
		model.addObject("username", userDetail.getUsername());
	  }

	  model.setViewName("403");
	  return model;

	}

}

8. Demo

8.1. Default Page
XML – http://localhost:8080/spring-security-loginform-database/
Annotation – http://localhost:8080/spring-security-loginform-database-annotation/

spring-security-database-default

8.2 Try to access /admin page, only “mkyong” ROLE_ADMIN is allowed to access.

spring-security-database-admin

8.3. If “alex” is try to access /admin, 403 access denied page is displayed.

spring-security-database-403

8.3 “alex” in default page, show the use of sec:authorize

spring-security-database-sec-tag

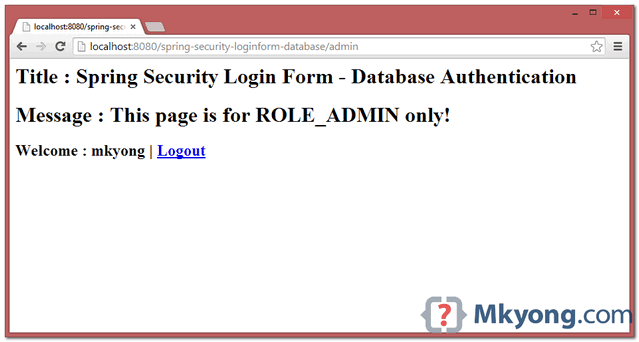

8.4. If “mkyong” is try to access /admin, admin page is displayed.

spring-security-database-admin-login

Download Source Code

Download XML version – spring-security-login-form-database-xml.zip (16 KB)
Download Annotation version – spring-security-login-form-database-annotation.zip (22 KB)

References

  1. Spring Security Reference – jdbc-ser-service
  2. Spring Security Reference – juser-schema
  3. Spring Security Reference – taglibs
  4. Spring Security Hello World Annotation Example
  5. Creating a Custom Login Form
  6. Spring Security – How to customize 403 access denied page
Tags :
Founder of Mkyong.com and HostingCompass.com, love Java and open source stuff. Follow him on Twitter, or befriend him on Facebook or Google Plus. If you like my tutorials, consider making a donation to this charity, thanks.

Related Posts

Popular Posts
