jquery autocomplete

In this tutorial, we show you how to integrate jQuery autocomplete plugin with Spring MVC.

Tools and Libraries used :

  1. Spring MVC 3.2
  2. jQuery autocomplete plugin – github
  3. Maven 3
  4. Eclipse IDE

Review the tutorial’s flows :

  1. An HTML page, with a textbox.
  2. If the user is tying on the textbox, it will fire an Ajax request (via autocomplete plugin) to Spring controller.
  3. Spring process the user input and return the search result (in JSON format).
  4. The “autocomplete plugin” process the returned result and display the autocomplete suggestion box. See figure above.

1. Project Directory

Review the final project directory structure, a standard Maven project.

spring-mvc-jquery-autocomplete-directory

2. Project Dependencies

Declares Spring, JSTL and Jackson(JSON result).

pom.xml
       <properties>
		<spring.version>3.2.2.RELEASE</spring.version>
		<jstl.version>1.2</jstl.version>
		<jackson.version>1.9.10</jackson.version>
	</properties>

	<dependencies>
		<!-- jstl -->
		<dependency>
			<groupId>jstl</groupId>
			<artifactId>jstl</artifactId>
			<version>${jstl.version}</version>
		</dependency>

		<!-- Spring Core -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-core</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<!-- need this for @Configuration -->
		<dependency>
			<groupId>cglib</groupId>
			<artifactId>cglib</artifactId>
			<version>2.2.2</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-web</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<!-- Jackson -->
		<dependency>
			<groupId>org.codehaus.jackson</groupId>
			<artifactId>jackson-mapper-asl</artifactId>
			<version>${jackson.version}</version>
		</dependency>

	</dependencies>

3. Spring MVC – Data Provider

A Spring controller, if user issue a “/getTags” request, Spring will filter out the result with user input and return it in JSON format.

MainController.java
package com.mkyong.web.controller;

import java.util.ArrayList;
import java.util.List;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.servlet.ModelAndView;

import com.mkyong.web.domain.Tag;

@Controller
public class MainController {

	List<Tag> data = new ArrayList<Tag>();

	MainController() {
		// init data for testing
		data.add(new Tag(1, "ruby"));
		data.add(new Tag(2, "rails"));
		data.add(new Tag(3, "c / c++"));
		data.add(new Tag(4, ".net"));
		data.add(new Tag(5, "python"));
		data.add(new Tag(6, "java"));
		data.add(new Tag(7, "javascript"));
		data.add(new Tag(8, "jscript"));

	}

	@RequestMapping(value = "/", method = RequestMethod.GET)
	public ModelAndView getPages() {

		ModelAndView model = new ModelAndView("example");
		return model;

	}

	@RequestMapping(value = "/getTags", method = RequestMethod.GET)
	public @ResponseBody
	List<Tag> getTags(@RequestParam String tagName) {

		return simulateSearchResult(tagName);

	}

	private List<Tag> simulateSearchResult(String tagName) {

		List<Tag> result = new ArrayList<Tag>();

		// iterate a list and filter by tagName
		for (Tag tag : data) {
			if (tag.getTagName().contains(tagName)) {
				result.add(tag);
			}
		}

		return result;
	}

}
Tag.java
package com.mkyong.web.domain;

public class Tag {

	public int id;
	public String tagName;

	//getter and setter methods

	public Tag(int id, String tagName) {
		this.id = id;
		this.tagName = tagName;
	}

}
mvc-dispatcher-servlet.xml – Map the resources folder.
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
        http://www.springframework.org/schema/mvc
		http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context-3.0.xsd">

	<context:component-scan base-package="com.mkyong" />

	<bean
		class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<property name="prefix">
			<value>/WEB-INF/pages/</value>
		</property>
		<property name="suffix">
			<value>.jsp</value>
		</property>
	</bean>

	<mvc:resources mapping="/resources/**" location="/resources/" />

	<mvc:annotation-driven />

</beans>

4. jQuery Automplete Plugin

The JSP page below should be self-explanatory.

WEB-INF/pages/example.jsp
<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<html>
<head>
<script src="<c:url value="/resources/core/jquery.1.10.2.min.js" />"></script>
<script src="<c:url value="/resources/core/jquery.autocomplete.min.js" />"></script>
<link href="<c:url value="/resources/core/main.css" />" rel="stylesheet">
</head>
<body>
  <h2>Spring MVC + jQuery + Autocomplete example</h2>

  <div>
	<input type="text"  id="w-input-search" value="">
	<span>
	  <button id="button-id" type="button">Search</button>
	</span>
  </div>

  <script>
  $(document).ready(function() {

	$('#w-input-search').autocomplete({
		serviceUrl: '${pageContext.request.contextPath}/getTags',
		paramName: "tagName",
		delimiter: ",",
	   transformResult: function(response) {

		return {
		  //must convert json to javascript object before process
		  suggestions: $.map($.parseJSON(response), function(item) {

		      return { value: item.tagName, data: item.id };
		   })

		 };

            }

	 });

  });
  </script>

</body>
</html>

#1. The autocomplete plugin will generate the suggestions list with following HTML tags.

<div class="autocomplete-suggestions">
    <div class="autocomplete-suggestion autocomplete-selected">...</div>
    <div class="autocomplete-suggestion">...</div>
    <div class="autocomplete-suggestion">...</div>
</div>

So, you need to style it, for example :

main.css
.autocomplete-suggestions { border: 1px solid #999; background: #FFF; overflow: auto; }
.autocomplete-suggestion { padding: 5px 5px; white-space: nowrap; overflow: hidden; font-size:22px}
.autocomplete-selected { background: #F0F0F0; }
.autocomplete-suggestions strong { font-weight: bold; color: #3399FF; }

#2. Fro this “autocomplete plugin”, the response from the server must be a JSON formatted JavaScript object like this :

{
    suggestions: [
        { value: "Java",        data: "1001" },
        { value: "JavaScript",  data: "1002" },
        { value: "Ruby",        data: "1003" }
    ]
}

#3. Review the following Ajax request

  $('#w-input-search').autocomplete({
	serviceUrl: '${pageContext.request.contextPath}/getTags',
	paramName: "tagName", // ?tagName='user input'
	delimiter: ",",
	transformResult: function(response) {

	   return {

	      suggestions: $.map($.parseJSON(response), function(item) {
		 return { value: item.tagName, data: item.id };
	      })

	   };

	}
   });
  1. serviceUrl – Server side URL or callback function that returns the JSON data.
  2. paramName – In this case, it will generate getTags?tagName=user input. Default is ?query=user input.
  3. delimiter – For multiple suggestions.
  4. $.parseJSON (response) – Java will return JSON formatted data, so, you need to convert it to a JavaScript object.

5. Demo

Start and access “http://localhost:8080/SpringMvcExample/“.

Type “java

jquery autocomplete

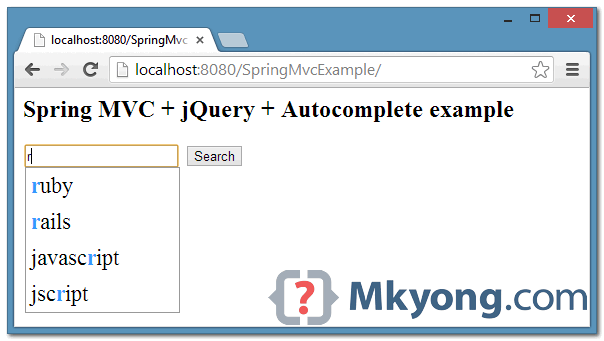

Type “r

jquery autocomplete

Download Source Code

References

  1. jQuery autocomplete plugin
  2. Create a Simple Autocomplete With HTML5 & jQuery
  3. 35+ Best Ajax jQuery Autocomplete Tutorial & Plugin with Examples
  4. jQuery $.parseJSON example
  5. jQuery $.map() example
  6. jQuery $.each() example
  7. Wikipedia : JSON
