Spring Boot WebFlux + Server-sent events example

author image
By |
Viewed: 5,998 (+21 pv/w)
Tags:

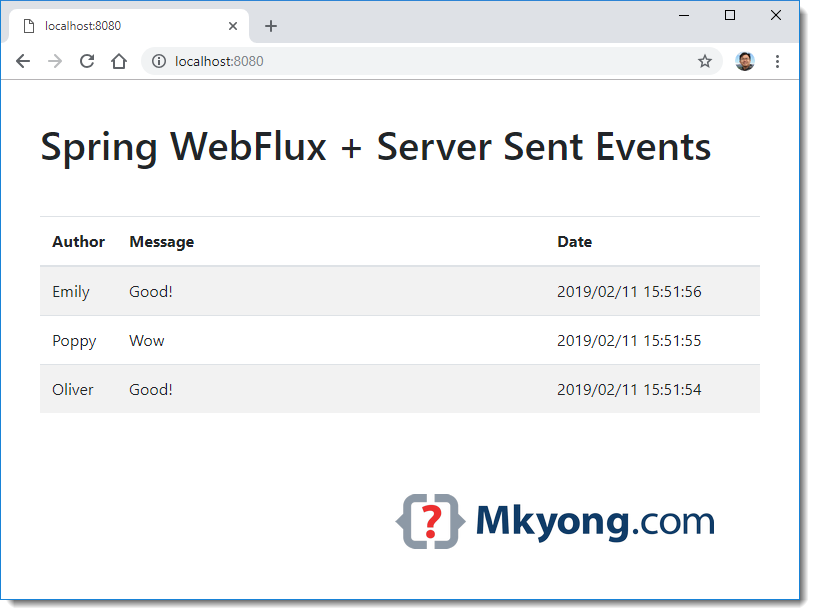

In this article, we will show you how to develop a reactive web application, using Server-sent events

  • Spring Boot 2.1.2.RELEASE
  • Spring WebFlux 5.1.4.RELEASE
  • Thymeleaf 3.0.11.RELEASE
  • JUnit 5.3.2
  • Maven 3

In Spring, returns JSON and header MediaType.TEXT_EVENT_STREAM_VALUE


@RestController
public class CommentController {

    @GetMapping(path = "/comment/stream",
		produces = MediaType.TEXT_EVENT_STREAM_VALUE)
    public Flux<Comment> feed() {
        //...
    }

}

In Javascript, uses EventSource to send a request to the above endpoint.


function loadComments () {

    this.source = null;

    this.start = function () {

        this.source = new EventSource("/comment/stream");

        this.source.addEventListener("message", function (event) {

            var comment = JSON.parse(event.data);

            //... update somewhere

        });

        this.source.onerror = function () {
            this.close();
        };

    };

    this.stop = function() {
        this.source.close();
    }

}

comment = new loadComments();

window.onload = function() {
    comment.start();
};
window.onbeforeunload = function() {
    comment.stop();
}

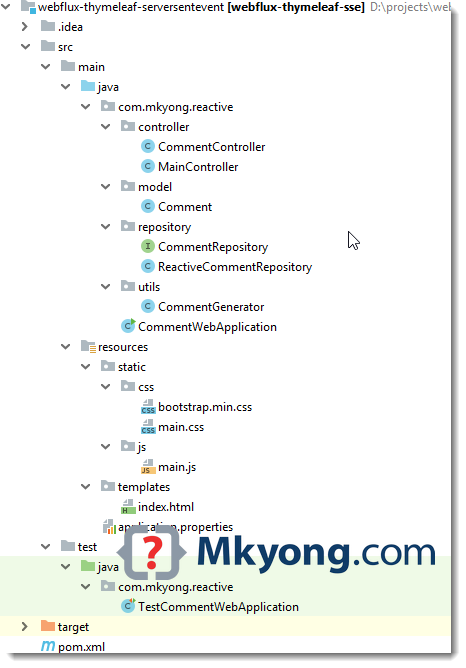

1. Project Directory

project directory

2. Maven

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
		 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.mkyong.spring.reactive</groupId>
    <artifactId>webflux-thymeleaf-sse</artifactId>
    <version>1.0</version>

    <properties>
        <java.version>1.8</java.version>
        <junit-jupiter.version>5.3.2</junit-jupiter.version>
    </properties>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.2.RELEASE</version>
    </parent>

    <dependencies>

        <!-- webflux reactive -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-webflux</artifactId>
        </dependency>

        <!-- thymeleaf -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>

        <!-- exclude junit 4, prefer junit 5 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>junit</groupId>
                    <artifactId>junit</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <!-- junit 5 -->
        <dependency>
            <groupId>org.junit.jupiter</groupId>
            <artifactId>junit-jupiter-engine</artifactId>
            <version>${junit-jupiter.version}</version>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <optional>true</optional>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>

            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>2.22.0</version>
            </plugin>

        </plugins>
    </build>

</project>

Display the project dependencies.


$ mvn dependency:tree

[INFO] com.mkyong.spring.reactive:webflux-thymeleaf-sse:jar:1.0
[INFO] +- org.springframework.boot:spring-boot-starter-webflux:jar:2.1.2.RELEASE:compile
[INFO] |  +- org.springframework.boot:spring-boot-starter:jar:2.1.2.RELEASE:compile
[INFO] |  |  +- org.springframework.boot:spring-boot-starter-logging:jar:2.1.2.RELEASE:compile
[INFO] |  |  |  +- ch.qos.logback:logback-classic:jar:1.2.3:compile
[INFO] |  |  |  |  \- ch.qos.logback:logback-core:jar:1.2.3:compile
[INFO] |  |  |  +- org.apache.logging.log4j:log4j-to-slf4j:jar:2.11.1:compile
[INFO] |  |  |  |  \- org.apache.logging.log4j:log4j-api:jar:2.11.1:compile
[INFO] |  |  |  \- org.slf4j:jul-to-slf4j:jar:1.7.25:compile
[INFO] |  |  +- javax.annotation:javax.annotation-api:jar:1.3.2:compile
[INFO] |  |  \- org.yaml:snakeyaml:jar:1.23:runtime
[INFO] |  +- org.springframework.boot:spring-boot-starter-json:jar:2.1.2.RELEASE:compile
[INFO] |  |  +- com.fasterxml.jackson.core:jackson-databind:jar:2.9.8:compile
[INFO] |  |  |  +- com.fasterxml.jackson.core:jackson-annotations:jar:2.9.0:compile
[INFO] |  |  |  \- com.fasterxml.jackson.core:jackson-core:jar:2.9.8:compile
[INFO] |  |  +- com.fasterxml.jackson.datatype:jackson-datatype-jdk8:jar:2.9.8:compile
[INFO] |  |  +- com.fasterxml.jackson.datatype:jackson-datatype-jsr310:jar:2.9.8:compile
[INFO] |  |  \- com.fasterxml.jackson.module:jackson-module-parameter-names:jar:2.9.8:compile
[INFO] |  +- org.springframework.boot:spring-boot-starter-reactor-netty:jar:2.1.2.RELEASE:compile
[INFO] |  |  \- io.projectreactor.netty:reactor-netty:jar:0.8.4.RELEASE:compile
[INFO] |  |     +- io.netty:netty-codec-http:jar:4.1.31.Final:compile
[INFO] |  |     |  \- io.netty:netty-codec:jar:4.1.31.Final:compile
[INFO] |  |     +- io.netty:netty-codec-http2:jar:4.1.31.Final:compile
[INFO] |  |     +- io.netty:netty-handler:jar:4.1.31.Final:compile
[INFO] |  |     |  +- io.netty:netty-buffer:jar:4.1.31.Final:compile
[INFO] |  |     |  \- io.netty:netty-transport:jar:4.1.31.Final:compile
[INFO] |  |     |     \- io.netty:netty-resolver:jar:4.1.31.Final:compile
[INFO] |  |     +- io.netty:netty-handler-proxy:jar:4.1.31.Final:compile
[INFO] |  |     |  \- io.netty:netty-codec-socks:jar:4.1.31.Final:compile
[INFO] |  |     \- io.netty:netty-transport-native-epoll:jar:linux-x86_64:4.1.31.Final:compile
[INFO] |  |        +- io.netty:netty-common:jar:4.1.31.Final:compile
[INFO] |  |        \- io.netty:netty-transport-native-unix-common:jar:4.1.31.Final:compile
[INFO] |  +- org.hibernate.validator:hibernate-validator:jar:6.0.14.Final:compile
[INFO] |  |  +- javax.validation:validation-api:jar:2.0.1.Final:compile
[INFO] |  |  +- org.jboss.logging:jboss-logging:jar:3.3.2.Final:compile
[INFO] |  |  \- com.fasterxml:classmate:jar:1.4.0:compile
[INFO] |  +- org.springframework:spring-web:jar:5.1.4.RELEASE:compile
[INFO] |  |  \- org.springframework:spring-beans:jar:5.1.4.RELEASE:compile
[INFO] |  +- org.springframework:spring-webflux:jar:5.1.4.RELEASE:compile
[INFO] |  |  \- io.projectreactor:reactor-core:jar:3.2.5.RELEASE:compile
[INFO] |  |     \- org.reactivestreams:reactive-streams:jar:1.0.2:compile
[INFO] |  \- org.synchronoss.cloud:nio-multipart-parser:jar:1.1.0:compile
[INFO] |     +- org.slf4j:slf4j-api:jar:1.7.25:compile
[INFO] |     \- org.synchronoss.cloud:nio-stream-storage:jar:1.1.3:compile
[INFO] +- org.springframework.boot:spring-boot-starter-thymeleaf:jar:2.1.2.RELEASE:compile
[INFO] |  +- org.thymeleaf:thymeleaf-spring5:jar:3.0.11.RELEASE:compile
[INFO] |  |  \- org.thymeleaf:thymeleaf:jar:3.0.11.RELEASE:compile
[INFO] |  |     +- org.attoparser:attoparser:jar:2.0.5.RELEASE:compile
[INFO] |  |     \- org.unbescape:unbescape:jar:1.1.6.RELEASE:compile
[INFO] |  \- org.thymeleaf.extras:thymeleaf-extras-java8time:jar:3.0.2.RELEASE:compile
[INFO] +- org.springframework.boot:spring-boot-starter-test:jar:2.1.2.RELEASE:test
[INFO] |  +- org.springframework.boot:spring-boot-test:jar:2.1.2.RELEASE:test
[INFO] |  +- org.springframework.boot:spring-boot-test-autoconfigure:jar:2.1.2.RELEASE:test
[INFO] |  +- com.jayway.jsonpath:json-path:jar:2.4.0:test
[INFO] |  |  \- net.minidev:json-smart:jar:2.3:test
[INFO] |  |     \- net.minidev:accessors-smart:jar:1.2:test
[INFO] |  |        \- org.ow2.asm:asm:jar:5.0.4:test
[INFO] |  +- org.assertj:assertj-core:jar:3.11.1:test
[INFO] |  +- org.mockito:mockito-core:jar:2.23.4:test
[INFO] |  |  +- net.bytebuddy:byte-buddy:jar:1.9.7:test
[INFO] |  |  +- net.bytebuddy:byte-buddy-agent:jar:1.9.7:test
[INFO] |  |  \- org.objenesis:objenesis:jar:2.6:test
[INFO] |  +- org.hamcrest:hamcrest-core:jar:1.3:test
[INFO] |  +- org.hamcrest:hamcrest-library:jar:1.3:test
[INFO] |  +- org.skyscreamer:jsonassert:jar:1.5.0:test
[INFO] |  |  \- com.vaadin.external.google:android-json:jar:0.0.20131108.vaadin1:test
[INFO] |  +- org.springframework:spring-core:jar:5.1.4.RELEASE:compile
[INFO] |  |  \- org.springframework:spring-jcl:jar:5.1.4.RELEASE:compile
[INFO] |  +- org.springframework:spring-test:jar:5.1.4.RELEASE:test
[INFO] |  \- org.xmlunit:xmlunit-core:jar:2.6.2:test
[INFO] |     \- javax.xml.bind:jaxb-api:jar:2.3.1:test
[INFO] |        \- javax.activation:javax.activation-api:jar:1.2.0:test
[INFO] +- org.junit.jupiter:junit-jupiter-engine:jar:5.3.2:test
[INFO] |  +- org.apiguardian:apiguardian-api:jar:1.0.0:test
[INFO] |  +- org.junit.platform:junit-platform-engine:jar:1.3.2:test
[INFO] |  |  +- org.junit.platform:junit-platform-commons:jar:1.3.2:test
[INFO] |  |  \- org.opentest4j:opentest4j:jar:1.1.1:test
[INFO] |  \- org.junit.jupiter:junit-jupiter-api:jar:5.3.2:test
[INFO] \- org.springframework.boot:spring-boot-devtools:jar:2.1.2.RELEASE:compile (optional)
[INFO]    +- org.springframework.boot:spring-boot:jar:2.1.2.RELEASE:compile
[INFO]    |  \- org.springframework:spring-context:jar:5.1.4.RELEASE:compile
[INFO]    |     +- org.springframework:spring-aop:jar:5.1.4.RELEASE:compile
[INFO]    |     \- org.springframework:spring-expression:jar:5.1.4.RELEASE:compile
[INFO]    \- org.springframework.boot:spring-boot-autoconfigure:jar:2.1.2.RELEASE:compile

3. Spring Boot + Spring WebFlux

3.1 Spring WebFlux annotation based controller. To enable data streaming. write produces = MediaType.TEXT_EVENT_STREAM_VALUE

CommentController.java

package com.mkyong.reactive.controller;

import com.mkyong.reactive.model.Comment;
import com.mkyong.reactive.repository.CommentRepository;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.MediaType;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
import reactor.core.publisher.Flux;

@RestController
public class CommentController {

    @Autowired
    private CommentRepository commentRepository;

    @GetMapping(path = "/comment/stream",
		produces = MediaType.TEXT_EVENT_STREAM_VALUE)
    public Flux<Comment> feed() {
        return this.commentRepository.findAll();
    }

}
MainController.java

package com.mkyong.reactive.controller;

import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;

@Controller
public class MainController {

    @GetMapping("/")
    public String index(final Model model) {
        return "index";
    }

}

3.2 In repository, return a Flux object.

CommentRepository.java

package com.mkyong.reactive.repository;

import com.mkyong.reactive.model.Comment;
import reactor.core.publisher.Flux;

public interface CommentRepository {

    Flux<Comment> findAll();

}
ReactiveCommentRepository.java

package com.mkyong.reactive.repository;

import com.mkyong.reactive.model.Comment;
import com.mkyong.reactive.utils.CommentGenerator;
import org.springframework.stereotype.Repository;
import reactor.core.publisher.Flux;

import java.time.Duration;
import java.util.Arrays;
import java.util.List;

@Repository
public class ReactiveCommentRepository implements CommentRepository {

    @Override
    public Flux<Comment> findAll() {

        //simulate data streaming every 1 second.
        return Flux.interval(Duration.ofSeconds(1))
                .onBackpressureDrop()
                .map(this::generateComment)
                .flatMapIterable(x -> x);

    }

    private List<Comment> generateComment(long interval) {

        Comment obj = new Comment(
			CommentGenerator.randomAuthor(),
			CommentGenerator.randomMessage(),
			CommentGenerator.getCurrentTimeStamp());
        return Arrays.asList(obj);

    }

}

3.3 A utils class to generate random comments.

CommentGenerator.java

package com.mkyong.reactive.utils;

import java.time.LocalDateTime;
import java.time.format.DateTimeFormatter;
import java.util.Arrays;
import java.util.List;
import java.util.Random;

public class CommentGenerator {

    private static final DateTimeFormatter dtf = DateTimeFormatter.ofPattern("yyyy/MM/dd HH:mm:ss");
    private static final Random RANDOM = new Random(System.currentTimeMillis());

    private static final List<String> COMMENT_AUTHOR =
            Arrays.asList(
                    "Mkyong", "Oliver", "Jack", "Harry", "Jacob",
                    "Isla", "Emily", "Poppy", "Ava", "Isabella");


    private static final List<String> COMMENT_MESSAGE =
            Arrays.asList(
                    "I Love this!",
                    "Me too!",
                    "Wow",
                    "True!",
                    "Hello everyone here?",
                    "Good!");

    public static String randomAuthor() {
        return COMMENT_AUTHOR.get(RANDOM.nextInt(COMMENT_AUTHOR.size()));
    }

    public static String randomMessage() {
        return COMMENT_MESSAGE.get(RANDOM.nextInt(COMMENT_MESSAGE.size()));
    }

    public static String getCurrentTimeStamp() {
        return dtf.format(LocalDateTime.now());
    }
}

3.4 Comment model.

Movie.java

package com.mkyong.reactive.model;

public class Comment {

    private String author;
    private String message;
    private String timestamp;

    //getter, setter and constructor
}

3.5 Start Spring Boot.

CommentWebApplication.java

package com.mkyong.reactive;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class CommentWebApplication {

    public static void main(String[] args) {
        SpringApplication.run(CommentWebApplication.class, args);
    }

}

4. Thymeleaf

There is no special reactive tag in thymeleaf template, just uses the normal loop.

resources/templates/index.html

<!DOCTYPE html>
<html>
<head>
    <meta charset="utf-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <link data-th-href="@{/css/bootstrap.min.css}" rel="stylesheet">
    <link data-th-href="@{/css/main.css}" rel="stylesheet">
</head>
<body>

<div class="container">

    <div class="row">
        <div id="title">
            <h1>Spring WebFlux + Server Sent Events</h1>
        </div>

        <table id="comments" class="table table-striped">
            <thead>
            <tr>
                <th width="10%">Author</th>
                <th width="60%">Message</th>
                <th width="30%">Date</th>
            </tr>
            </thead>
            <tbody>
            <tr class="result" data-th-each="comment : ${comments}">
                <td>[[${comment.author}]]</td>
                <td>[[${comment.message}]]</td>
                <td>[[${comment.timestamp}]]</td>
            </tr>
            </tbody>
        </table>
    </div>

</div>

<script data-th-src="@{/js/main.js}"></script>

</body>

</html>

5. JavaScript EventSource.

The key is to use the Javascript EventSource class to send a request and listen to the message event, and update the streaming data into a table reactively.

resources/static/js/main.js

function loadComments () {

    this.source = null;

    this.start = function () {

        var commentTable = document.getElementById("comments");

        this.source = new EventSource("/comment/stream");

        this.source.addEventListener("message", function (event) {

            // These events are JSON, so parsing and DOM fiddling are needed
            var comment = JSON.parse(event.data);

            var row = commentTable.getElementsByTagName("tbody")[0].insertRow(0);
            var cell0 = row.insertCell(0);
            var cell1 = row.insertCell(1);
            var cell2 = row.insertCell(2);

            cell0.className = "author-style";
            cell0.innerHTML = comment.author;

            cell1.className = "text";
            cell1.innerHTML = comment.message;

            cell2.className = "date";
            cell2.innerHTML = comment.timestamp;

        });

        this.source.onerror = function () {
            this.close();
        };

    };

    this.stop = function() {
        this.source.close();
    }

}

comment = new loadComments();

/*
 * Register callbacks for starting and stopping the SSE controller.
 */
window.onload = function() {
    comment.start();
};
window.onbeforeunload = function() {
    comment.stop();
}

6. Unit Test

WebTestClient to unit test the Streaming Responses

TestCommentWebApplication.java

package com.mkyong.reactive;

import com.mkyong.reactive.model.Comment;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.http.MediaType;
import org.springframework.test.web.reactive.server.WebTestClient;

import java.util.List;

import static org.junit.jupiter.api.Assertions.assertEquals;

@SpringBootTest(webEnvironment = SpringBootTest.WebEnvironment.RANDOM_PORT)
public class TestCommentWebApplication {

    @Autowired
    private WebTestClient webClient;

    @Test
    public void testCommentStream() {

        List<Comment> comments = webClient
                .get().uri("/comment/stream")
                .accept(MediaType.valueOf(MediaType.TEXT_EVENT_STREAM_VALUE))
                .exchange()
                .expectStatus().isOk()
                .returnResult(Comment.class)
                .getResponseBody()
                .take(3) // take 3 comment objects
                .collectList()
                .block();

        comments.forEach(x -> System.out.println(x));

        assertEquals(3, comments.size());

    }

}

7.Demo


$ mvn spring-boot:run

2019-02-11 15:41:17.657  INFO 257192 --- [  restartedMain] o.s.b.web.embedded.netty.NettyWebServer  : Netty started on port(s): 8080

URL = http://localhost:8080
The data are streaming, and random comment will be displayed every 1 second.

Download Source Code

$ git clone https://github.com/mkyong/spring-boot.git
$ cd webflux-thymeleaf-serversentevent
$ mvn spring-boot:run

References

About Author

author image
Founder of Mkyong.com, love Java and open source stuff. Follow him on Twitter. If you like my tutorials, consider make a donation to these charities.

Comments

Subscribe
Notify of
4 Comments
Most Voted
Newest Oldest
Inline Feedbacks
View all comments
pangj
3 years ago

Hi Mkyong,
This is an excellent introduction of using the sse streaming in spring webfux. Do you have any idea on how we end the connection when receiving the close request from the browser’s eventSource object?

1
Reply
Jacopo
4 years ago

where are the .css files?

1
Reply
Yevhenii
1 year ago

How to only update comments instead of appending new?

0
Reply
john
4 years ago

Tq………How to read body from ReactiveMongoTemplate.changeStream .. i am getting all the logs but interested only person object ChangeStreamOptions options = ChangeStreamOptions.builder()
.build();

return reactiveMongoTemplate.changeStream(“persons”, options,Person.class)
.log();

0
Reply
