Spring Boot – Deploy WAR file to Tomcat

In this article, we will show you how to deploy a Spring Boot WAR file to the Tomcat servlet container.

For Spring Boot WAR deployment, you need to do three steps:

  1. Extends SpringBootServletInitializer
  2. Marked the embedded servlet container as provided.
  3. Update packaging to war

Tested

  1. Spring Boot 1.4.2.RELEASE
  2. Tomcat 8.5.9
  3. Maven 3
Note
In Spring Boot, the final executable JAR file with embedded server solution may not suitable in all production environments, especially the deployment team (a team with good knowledge of server optimization and monitoring skills, but lack of, the development experience), they want full control of the server, and they don’t touch code.

1. Extends SpringBootServletInitializer

Make the existing @SpringBootApplication class extends SpringBootServletInitializer

1.1 Classic Spring Boot JAR deployment. (Update this file to support WAR deployment)

SpringBootWebApplication.java

import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SpringBootWebApplication {

    public static void main(String[] args) throws Exception {
        SpringApplication.run(SpringBootWebApplication.class, args);
    }

}

1.2 Spring Boot WAR deployment.

SpringBootWebApplication.java

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.builder.SpringApplicationBuilder;
import org.springframework.boot.web.support.SpringBootServletInitializer;

@SpringBootApplication
public class SpringBootWebApplication extends SpringBootServletInitializer {

    @Override
    protected SpringApplicationBuilder configure(SpringApplicationBuilder application) {
        return application.sources(SpringBootWebApplication.class);
    }

    public static void main(String[] args) throws Exception {
        SpringApplication.run(SpringBootWebApplication.class, args);
    }

}

/*@SpringBootApplication
public class SpringBootWebApplication {

    public static void main(String[] args) throws Exception {
        SpringApplication.run(SpringBootWebApplication.class, args);
    }

}*/

If you create a extra SpringBootWebApplication class for deployment, make sure tell Spring Boot which main class to start :

pom.xml

  <properties>
        <start-class>com.mkyong.NewSpringBootWebApplicationForWAR</start-class>
  </properties>

Read this – Spring Boot – Which main class to start

2. Marked the embedded servlet container as provided

pom.xml

<dependencies>

	<dependency>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-thymeleaf</artifactId>
	</dependency>

	<!-- marked the embedded servlet container as provided -->
	<dependency>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-tomcat</artifactId>
		<scope>provided</scope>
	</dependency>

</dependencies>

3. Update packaging to war

pom.xml

  <packaging>war</packaging>

Done, mvn package and copy the $project/target/xxx.war to Tomcat for deployment.

4. Full example – Spring Boot WAR + Tomcat Deployment

4.1 Take this Spring Boot Thymeleaf example, update it and deploy to Tomcat manually.

4.2 Update the existing SpringBootWebApplication and make it extends the SpringBootServletInitializer

pom.xml

package com.mkyong;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.builder.SpringApplicationBuilder;
import org.springframework.boot.web.support.SpringBootServletInitializer;

@SpringBootApplication
public class SpringBootWebApplication extends SpringBootServletInitializer {

    @Override
    protected SpringApplicationBuilder configure(SpringApplicationBuilder application) {
        return application.sources(SpringBootWebApplication.class);
    }

    public static void main(String[] args) throws Exception {
        SpringApplication.run(SpringBootWebApplication.class, args);
    }

}

4.3 Update the packaging to war and mark the spring-boot-starter-tomcat as provided.

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
	http://maven.apache.org/xsd/maven-4.0.0.xsd">

    <modelVersion>4.0.0</modelVersion>

    <artifactId>spring-boot-web-thymeleaf</artifactId>
    <packaging>war</packaging>
    <name>Spring Boot Web Thymeleaf Example</name>
    <description>Spring Boot Web Thymeleaf Example</description>
    <url>https://www.mkyong.com</url>
    <version>1.0</version>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.4.2.RELEASE</version>
    </parent>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>

        <!-- marked the embedded servlet container as provided -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-tomcat</artifactId>
            <scope>provided</scope>
        </dependency>

        <!-- hot swapping, disable cache for template, enable live reload -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <optional>true</optional>
        </dependency>

        <!-- Optional, for bootstrap -->
        <dependency>
            <groupId>org.webjars</groupId>
            <artifactId>bootstrap</artifactId>
            <version>3.3.7</version>
        </dependency>

    </dependencies>
    <build>
        <plugins>
            <!-- Package as an executable jar/war -->
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

4.4 This is optional, update the contextPath to /mkyong for demonstration later. Done. Ready for WAR deployment.

application.properties

welcome.message: Hello Mkyong

server.contextPath=/mkyong

4.5 Get Tomcat and Deploy WAR file.

Mac OS X : Terminal


# Get Tomcat 8.5.9
spring-boot-project$ curl -O  http://www-us.apache.org/dist/tomcat/tomcat-8/v8.5.9/bin/apache-tomcat-8.5.9.tar.gz
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 9112k  100 9112k    0     0   799k      0  0:00:11  0:00:11 --:--:-- 1348k

# Extract it
$ tar -xvzf apache-tomcat-8.5.9.tar.gz

# Maven clean and package everything into a WAR file.
$ mvn clean package

# Copy WAR to Tomcat/webapp, renamed to mkyong.war
# By default, Tomcat take the war file name as the context path
$ cp target/spring-boot-web-thymeleaf-1.0.war apache-tomcat-8.5.9/webapps/mkyong.war

# Start Tomcat
$ ./apache-tomcat-8.5.9/bin/startup.sh
Using CATALINA_BASE:   /Users/mkyong/projects/spring-boot-web-thymeleaf/apache-tomcat-8.5.9
Using CATALINA_HOME:   /Users/mkyong/projects/spring-boot-web-thymeleaf/apache-tomcat-8.5.9
Using CATALINA_TMPDIR: /Users/mkyong/projects/spring-boot-web-thymeleaf/apache-tomcat-8.5.9/temp
Using JRE_HOME:        /Library/Java/JavaVirtualMachines/jdk1.8.0_74.jdk/Contents/Home
Using CLASSPATH:       /Users/mkyong/projects/spring-boot-web-thymeleaf/apache-tomcat-8.5.9/bin/bootstrap.jar:
/Users/mkyong/projects/spring-boot-web-thymeleaf/apache-tomcat-8.5.9/bin/tomcat-juli.jar
Tomcat started.

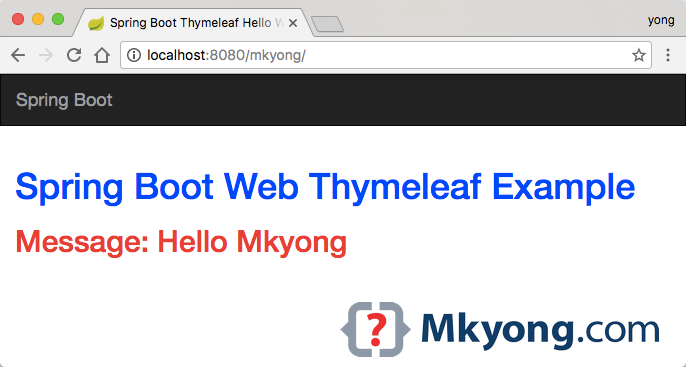

4.6 Access http://localhost:8080/mkyong/

spring-boot-tomcat-deployment

4.7 Done. Shut down Tomcat.

Mac OS X : Terminal

$ ./apache-tomcat-8.5.9/bin/shutdown.sh

Download Source Code

Download – spring-boot-war-tomcat.zip (13 KB)
