Maven dependency libraries not deploy in Eclipse IDE

Problem

By default, while starting the Tomcat server instance in Eclipse, the project’s dependency libraries will not deploy to the Eclipse’s Tomcat plugin library folder ‘WEB-INF/lib’ correctly. See this “.classpath” file, that is generated by Maven “mvn eclipse:eclipse” command.


<classpath>
  <classpathentry kind="src" path="src/main/java" including="**/*.java"/>
  <classpathentry kind="src" path="src/main/resources" excluding="**/*.java"/>
  <classpathentry kind="output" path="target/classes"/>

  <classpathentry kind="var"
    path="M2_REPO/org/apache/struts/struts-core/1.3.10/struts-core-1.3.10.jar" />
  <classpathentry kind="var"
    path="M2_REPO/org/apache/struts/struts-taglib/1.3.10/struts-taglib-1.3.10.jar"/>

  <classpathentry kind="con" path="org.eclipse.jdt.launching.JRE_CONTAINER"/>
</classpath>

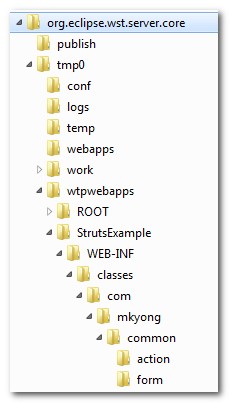

See the following Tomcat plugin folder, obviously, the dependency libraries are not deploy.
$workspace_folder\.metadata\.plugins\org.eclipse.wst.server.core\tmp0\wtpwebapps\StrutsExample

maven-eclipse-library-error1

Solution

As i know, there are two solutions :

1. Java EE dependencies module

In Eclipse IDE, right click on the project, click properties and select the Java EE module dependencies and check all the project dependency libraries.

maven-eclipse-library-solution1

This will update the Eclipse’s classpath (.classpath) by adding corresponds “attributes” tag


<classpath>
  <classpathentry kind="src" path="src/main/java" including="**/*.java"/>
  <classpathentry kind="src" path="src/main/resources" excluding="**/*.java"/>
  <classpathentry kind="output" path="target/classes"/>
  <classpathentry kind="var"
    path="M2_REPO/org/apache/struts/struts-core/1.3.10/struts-core-1.3.10.jar" >
    <attributes>
      <attribute name="org.eclipse.jst.component.dependency" value="/WEB-INF/lib"/>
    </attributes>
  </classpathentry>
  <classpathentry kind="var"
    path="M2_REPO/org/apache/struts/struts-taglib/1.3.10/struts-taglib-1.3.10.jar" >
    <attributes>
     <attribute name="org.eclipse.jst.component.dependency" value="/WEB-INF/lib"/>
    </attributes>
  </classpathentry>
  <classpathentry kind="con" path="org.eclipse.jdt.launching.JRE_CONTAINER"/>
</classpath>

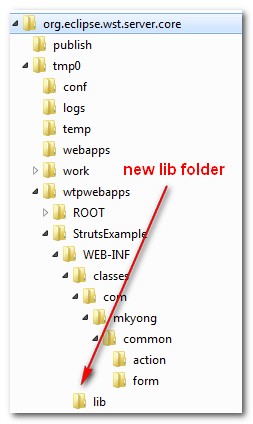

See the Tomcat plugin folder again, all dependency libraries are deployed to the “WEB-INF/lib” folder correctly.
$workspace_folder\.metadata\.plugins\org.eclipse.wst.server.core\tmp0\wtpwebapps\StrutsExample

Note
In Eclipse, you may need to delete the existing Tomcat server instant in the server tab, and create a new tomcat server instance to take effect.

2. WTP Support

Alternatively, you can issue the following command to make Maven support Eclipse WTP tool.


mvn eclipse:eclipse -Dwtpversion=2.0

The above command will generate a new file named “org.eclipse.wst.common.component” under project’s “.settings” folder.


<project-modules id="moduleCoreId" project-version="2.0">
  <wb-module deploy-name="StrutsExample">
    <property name="context-root" value="StrutsExample"/>
    <wb-resource deploy-path="/" source-path="src/main/webapp"/>
    <property name="java-output-path" value="/target/classes"/>
    <dependent-module archiveName="struts-core-1.3.10.jar" deploy-path="/WEB-INF/lib"
handle="module:/classpath/var/M2_REPO/org/apache/struts/struts-core/1.3.10/struts-core-1.3.10.jar">
      <dependency-type>uses</dependency-type>
    </dependent-module>
    <dependent-module archiveName="struts-taglib-1.3.10.jar" deploy-path="/WEB-INF/lib"
handle="module:/classpath/var/M2_REPO/org/apache/struts/struts-taglib/1.3.10/struts-taglib-1.3.10.jar">
      <dependency-type>uses</dependency-type>
    </dependent-module>
    <wb-resource deploy-path="/WEB-INF/classes" source-path="src/main/java"/>
    <wb-resource deploy-path="/WEB-INF/classes" source-path="src/main/resources"/>
  </wb-module>
</project-modules>

Now, start the server again, all dependency libraries will be deployed to the “WEB-INF/lib” folder automatically.
