How to block Denial of Service (DoS) with null route

server high load

This article is described how I find out the Denial of Service (DoS) IP and null route it, to solve the high load issue on my server.

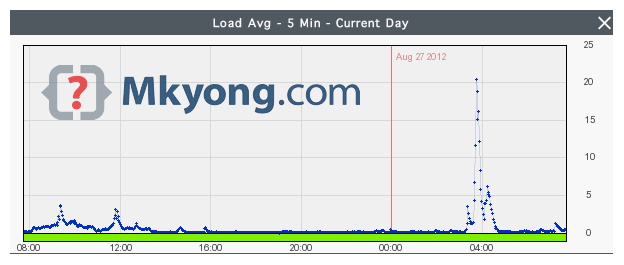

1. High Load

Recently, the server has hit an abnormally high load, CPU usage hits, average 15-20%.


#top

load average: 15.08, 18.30, 20.63

2. Who is Connected?

Not sure if this a DOS attack, or just a single IP abuse the connection? Issue following command to list all the IP addresses connected to my server.


#netstat -tn 2>/dev/null | grep :80 | awk '{print $5}' | cut -d: -f1 | sort | uniq -c | sort -nr | head

     215 122.163.226.243
     189 114.198.236.100
     156 120.63.179.245
     38 141.0.9.20
     37 49.248.0.2
     37 153.100.131.12
     31 223.62.169.73
     30 65.248.100.253
     29 203.112.82.128
     29 182.19.66.187

Below 3 IPs are taking 150+ connections, which is really abnormal, what are they trying to do?


 215 122.163.226.243
 189 114.198.236.100
 156 120.63.179.245

P.S Google above IPs, 2 are from India, 1 from Pakistan.

3. null route

I believed above 3 IPs are the root cause of the high load issue, let null route those IPs, so that all incoming connections from those 3 IPs will be dropped or ignored.

null route command


route add 122.163.226.243 gw 127.0.0.1 lo
route add 114.198.236.100 gw 127.0.0.1 lo
route add 120.63.179.245 gw 127.0.0.1 lo
Alternative Command
You can also use following command to null route the IPs, both are doing the same thing.


route add -host 122.163.226.243 reject
route add -host 114.198.236.100 reject
route add -host 120.63.179.245 reject

Uses netstat -nr to display all the routes, to make sure it is added into the route table.


# netstat -nr
Kernel IP routing table
Destination     Gateway         Genmask         Flags   MSS Window  irtt Iface
114.198.236.100 127.0.0.1       255.255.255.255 UGH       0 0          0 lo
120.63.179.245  127.0.0.1       255.255.255.255 UGH       0 0          0 lo
122.163.226.243 127.0.0.1       255.255.255.255 UGH       0 0          0 lo

Done, wait a few seconds, and check the server load again, it’s back to normal now.


#top

load average: 1.08, 5.30, 30.63

Check all connected IP again, those attacker’s IPs are gone:


#netstat -tn 2>/dev/null | grep :80 | awk '{print $5}' | cut -d: -f1 | sort | uniq -c | sort -nr | head

     40 141.0.9.20
     37 49.248.0.2
     36 153.100.131.12
     31 223.62.169.73
     25 65.248.100.253
     29 203.112.82.128
     29 182.19.66.187
     38 142.0.9.20
     28 141.121.9.20
     38 141.0.9.201

Done.

4. Delete null route

To delete existing null route IPs, uses route delete.


route delete 122.163.226.243
route delete 114.198.236.100
route delete 120.63.179.245
CSF Firewall
To prevent Denial of Service (DoS), try setup CSF and configure the CT_LIMIT to limit the number of connections from IP to access server.

References

  1. null route in wikipedia
  2. List all IP addresses connected to server
  3. Basic DoS/DDoS Mitigation with the CSF Firewall
